Description
Yalong YL-XIC-Ⅱ Trolley Motion Control Training Device is to expand the use function of PLC training platform, according to vocational school the teaching and training requirements and combined with the actual production and professional skills requirements, research and development products.

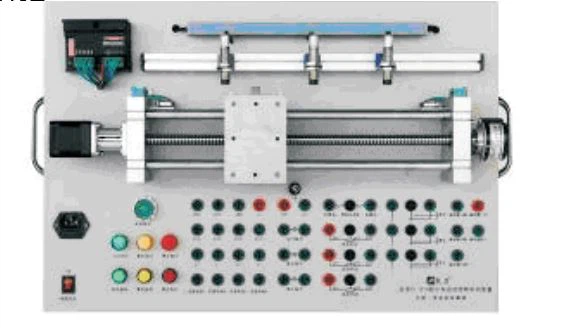

Main configuration
1. Stepper motor and stepper driver;
2. Ball screw: effective stroke is 500 mm;
3. Mechanical limit: 2 travel switches, as the limit hard protection of the two end points of the ball screw;
4. Position feedback sensor: 3 proximity switches, feedback the position of the trolley movement, select inductive type, NPN constant Open type, the detection distance cannot be adjusted (4mm);
5. Rotary encoder: 1 pc, using pulse counting for precise position control;
6. Control panel: including start and stop buttons, reset switch; run, alarm indicator, etc.;
7. Training bench: using aluminum alloy and metal materials, the overall design is exquisite and compact, and easy to use.
Training project
Using Yalong YL-XIC-Ⅱ type trolley motion control training device, the training items that can be added are:
1. Programmable controller advanced instruction programming training (optional)
Through the project training, students can expand their PLC application ability, master the knowledge and knowledge of programming in automatic control systems skill;
2. Sensor (proximity switch) application technology training
Through the project training, students can master the use knowledge and skills of commonly used detection components in automatic control systems;
3. Application technology training of rotary encoder
Through the project training, students can master the use knowledge and skills of commonly used detection components in automatic control systems;
4. Mechanism installation and debugging of ball screw
Through the project training, students will master the knowledge and skills of the installation and debugging of common mechanism components in the automatic control system;
5. Stepping motor and its driver training
Through the project training, students can master the knowledge of installation and debugging of stepping motors and their drives in the automatic control system And skills;
6. Complete machine installation and debugging training
Through the project training, students can master the installation and debugging of the car motion control system, so as to understand an automatic control system.Knowledge and skills of system installation, commissioning and work process.Students should use the power supply module, PLC control module, etc. in conjunction with the training of this device. Because in this device the power lines and signal lines of all the components of the company have been led to the safety sockets of the substrate. Students only need to use high the strength and safety test leads are led from the terminals on the power supply module and PLC control module to the corresponding safety sockets for implementation training.
