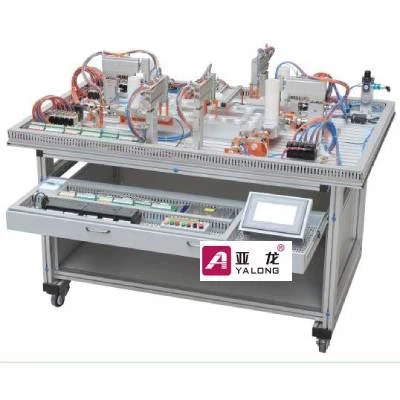

Shipborne Automatic Training Device

Yalong YL-235E shipborne automatic assembly line training device installs working units such as feeding, conveying and storage on the aluminum alloy guide rail training platform, forming a typical mechanical platform of automatic production line. Pneumatic driving technology is adopted in various institutions of the system to achieve precise positioning.

Ask for details

Category: Automation

Brands: Yalong

Description
Technical Information

Description

YL-235E simulates production process of the actual assembly line, reducing the distance between teaching instrument equipment and modern industrial equipment, and enhancing the graduates’adaptability of induction technology. The whole of equipment integrates mechanical commissioning, modern automatic control, and sensor application technology, electrical control technology, with high machinery precision and reasonable overall layout, which provides students and teachers a training platform with strong practical technical operation.

The device I s a mechanical platform with transport unit installed on the aluminum rail, the four feeding units, storage unit and other working unit, forming an electromechanical integration equipment; the electrical parts include programmable controllers, pneumatic system and detection systems composed by a variety of detection sensors; the whole driving implementation part is driven and controlled by the pneumatic drive, taking use of accuracy and easy-to-control characteristics of straight line for precise positioning.

List of Experiments

1. Organically integrate mechanical technology (including pneumatic technology), sensor technology, touch screen technology, PLC control and communication network technology, which embodies the feature of modern manufacturing industry processing process.

Installation and commissioning training of feeding unit;
Installation and commissioning of storage unit;
Installation and commissioning of conveying unit;
Installation and commissioning of automatic production line;

2. The overall structure is open and removable, easy to change module, confirm the module content as per integration of production and learning function, as a result, it is easy to select the module need while teaching;

3. It can complete the following tasks:

（1）. Installation and debugging of electromechanical machine:

Mechanical installation and adjustment of feed equipment;
Mechanical installation and adjustment of storage unit;
Mechanical installation and adjustment of conveying unit;
Installation and debugging of automatic production line equipment

1. AC power: single-phase AC 220±10% 50 Hz;

2. Temperature: -10～50℃; environment humidity: ≤90％ no condensation of water drops;

3. Dimension: 1500×960×1400 (mm) (L × W × H);

4. The apparent power of machine consumption: ≤ 1.5 kVA;

5. Safety: with grounding protection, electric leakage protection; use high insulation safety plug and high strength safety experiment wire with insulating sheath;
