Practical Operating Unit Board

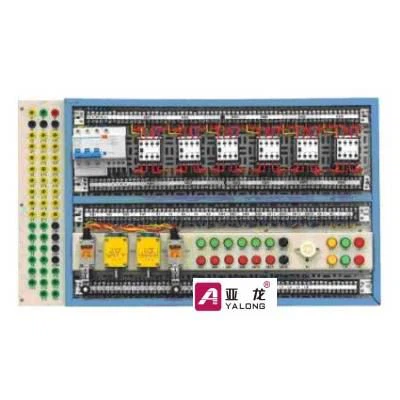

The trainer is designed for PLC trainer. Trainees can design various projects and operate on the platform. It uses mesh plat structure, easy to install and disassemble; there is the wiring duct for trainees to conduct wiring. It includes AC contactor, electric leakage switch, travel switch, button, indicator light, buzzer, etc.

Ask for details

Category: Automation

Brands: Yalong

Description
Technical Information

Description

List of Experiments

1. Forward and reverse rotation of motor and control of many places;

2. Motor Y-△ start control circuit training;

3. Automatic back and forth control of working bench;

4. Sequence control of 3 sets of motor;

5. Simulate small production line control;The above training projects are only for reference, trainee can design other training projects;

1. AC power: three-phase five-wire AC 380 V±10% 50Hz;

2. Temperature: -10～50℃; environment humidity:≤90％ without water condense;

3. Dimension: 700mm×420mm×40mm (L*W*H);

4. Overall consumption:≤1.0 kVA;

5. Safety: with grounding protection, electric leakage protection function, safety conforms to national standard; uses high insulating safety socket and high density security experiment wire with isolating sheath;
