Yalong yl-360A series PLC integrated training device (network version, 485 network) is a training device developed around the network technology.The device adopts aluminum and wood structure practical training platform, which is composed of practical training screen (including power control screen), practical training table and practical training storage cabinet.

Ask for details
Category:
Brands:

Description

_20201217102133

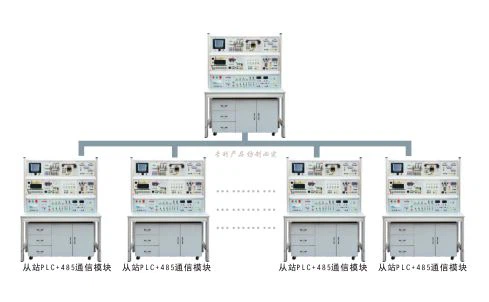

The PLC training system (network edition and 485 network) uses training station with aluminum wooden structure. The module uses standardized structure, and is interchangeable. The PLC training system (network edition and 485 network) is added with additional network function (485 network) based on the configurations of Yalong YL-360A series programmable logic controller training equipment. The network is PLC network control scheme based on RS485 serial communication. Each PLC achieves interconnected distributed control through RS485 serial communication. Users can choose different PLC by different manufacturers and its supported RS485 communication mode according to their needs to compose a small PLC network. The small PLC network is still widely used in small automatic production lines due to its features of simple structure and low price, and still accounts for a considerable share in modern industrial network communications. In addition, mastering RS485 serial communication based PLC network technology will lay a good foundation for further study of the field bus technology and industrial Ethernet technology etc.

System optional configuration

Choices of network system manufacturers



1Siemens series PLC7OMRON series PLC
2Mitsubishi series PLC8Panasonic series PLC
3Schneider series PLC9Delta series PLC
4Hitachi series PLC10AB series PLC
5Emerson series PLC11GE series PLC
6Another brand PLC

Packing&Shipping

1

QQ20201127154315

QQ20201127154341

1. Power supply: three-phase five-wire AC 380 V ± 7% 50 Hz;

2. Size: 1300 × 750 × 1700 (mm) (length × width × height);

3. The size of the computer desk: 600 × 530 × 1000 (mm) (length × width × height);

4. The apparent power of machine consumption: ≤ 1.5 kVA;
