Description

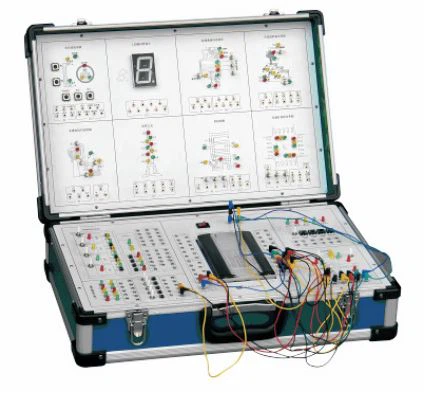

YL series PLC programmable controller experimental box is an integrated and portable training device for learning and development of PLC, which is mainly composed by the PLC and dozens of experimental units. The experimental units are designed according to different knowledge points of PLC, such as: responder, traffic intersections. The experimental box can be configured with modules of different brands and different types.
List of Experiments
A: Training projects of main training board (with PLC)
1) Basic instruction programming practice;
2) Responder;
3) Elevator control system;
4) Self-controlled rolling mill;
B: Training projects of extending training board one
5) Full-automatic washing machine;
6) Nixie tube display;
7) Various liquids mixture;
8) Automatic feed loading system;
9) Water level control of water tower;
10) Light of the tower;
11) Motor control;
12) Traffic light control of crossroad;
C: Training projects of extending training board two
13) Stepper motor;
14) Automatic vending machine;
15) Assembly line;
16) Manipulator control;
17) Four joint band carrier;
18) Material transportation car;
19) Mail decomposition;
20) Automatic-control molding machine;
