Description

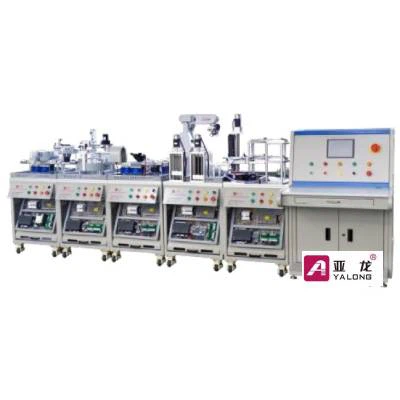

Yalong YL-301F automatic control practice training system is composed of particle feeding unit, capping and screwing unit, examining and sorting unit, product quality controlling unit, industrial robot conveying package unit, intelligent material storage unit and main controlling unit, which covers functions of intelligent assembling and production system, automatic packing system, automatic 3D warehouse system and intelligent logistics system, automatic examination and quality control system, production procedure data collection and controlling system, etc.
1) Input power supply: single phase AC 220V±10% 50HZ;
2) Input power: 5kw;
3) Working environment: temperature for using:0~40℃;temperature for storage:-10~65℃; humidity for using: below 90% (no condensing), clean air, no corrosive and explosive gas, no electric dust or dust that can damage the insulation;
4) Weight: around 350KG;
5) External dimension: L×W×H: 4000mm×1200mm×1500mm;
6) Intrinsic safety: it has ground protection, leakage protection and safety that comply with relative national standard. It is equipped with high-insulated safety socket and high strength safety experimental cable with insulated-protection cover.
