Description

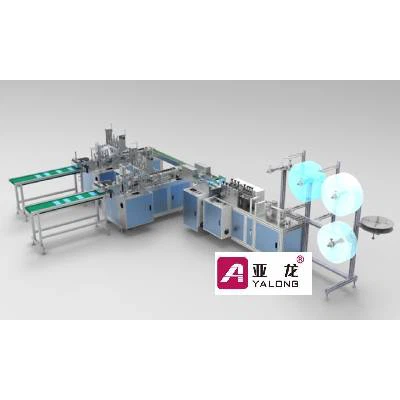

Appearance Drawing of Equipment
This picture is for reference only, subject to actual configuration.
Equipment Overview
The Medical Disposable Mask Full Automatic Production Line Training Equipment consists of 4 parts: 1 mask-body machine, 1 mask-piece feeding machine and 2 ear-band machines. The electrical layout is in the form of a small control cabinet, which is directly installed on the equipment. This electromechanical separation format is more in line with the actual industrial situation. The appearance is shown in the above picture.
The production line is a full-automatic “1-2” mask machine with 1 mask-body machine drives 2 ear-band machines. The whole equipment is controlled by PLC touch screens. The main conveyor belt of the mask-body machine is powered by single-phase motor for transport. The mask-piece feeding machine is powered by stepping motor for transport. The ear-band machines are powered by servo motor for transport. Accurate transmission, stable control and adjustable speed can be realized.
The mask-body machine of the production line outputs the three layers of non-woven fabric raw materials to the overturning mechanism of the mask-piece feeding machine after the processes of overlapping, curling, flattening after folding, cutting, sewing and the like. The mask tray is turned over by the overturning mechanism and transported to the ear-band machine by the mask-piece feeding mechanism, and then the ear-band machine completes the actions of ear band butt fusion, edge wrapping and the like for the mask, thus completing the production of a mask with ear band.
Finished Product
Process Flow:
Functional Characteristics
1. It adopts aluminum alloy structure, which is beautiful, firm and does not rust.
2. PLC programming control, high stability, low failure rate, less noise.
3. It is driven by frequency converter, servo motor and stepping motor with high precision.
4. Photoelectric detection of raw materials to avoid mistakes and reduce waste.
5. This equipment can supply 1 to 2 external ear-band machines.
6. The machine base adopts heavy-duty casters and buffer foot cups to move and fix, which is convenient and fast to move, does not shake and does not damage the floor.
7. This model is equipped with a new advanced conveyor belt, which can automatically collect products with high accuracy. Only sorting and packaging are required.
The basic functions of each work unit are as follows:
1. Mask-body machine
The basic function of the mask-body machine is:
To complete the production process from raw materials to mask body.
The composition of the mask-body machine;
The workflow of mask-body machine:
Hanging raw materials manually – curling, sewing the nose clip – narrowing a large piece of non-woven fabrics from left to right along the inclined plane to form a “folding structure” – flattening the mask surface – automatically cutting single mask and sewing edge – conveying to the mask-piece feeding machine.
2. Mask-piece feeding machine
The basic function of the mask-piece feeding machine is:
To turnover and convey the mask body.
The composition of mask-piece feeding machine:
The work flow of mask-piece feeding machine:
Turn over mask bodies conveyed by the mask-body machine and send them to 2 independent conveyor belts, then deliver mask bodies to 2 ear-band machines.
3. Ear-band machine
The basic Function of ear-band machine is:
To install the ear band for mask.
The composition of ear-band machine:
The working process of ear-band machine:
The mask body conveyed by the mask-piece feeding machine is fixed with the ear band by the hot-pressing method.
Training Program
The training program has organically integrated machinery (including pneumatic technology), ultrasonic technology, sensors, variable frequency speed regulation, servo motor drive control, stepper motor drive control, touch screen configuration, PLC control and other technologies, reflecting the characteristics of modern manufacturing production process.
★ Analysis of process flow of mask;
★ Installation and commissioning of machinery;
★ Design and installation of electrical circuits;
★ Design and commissioning of pneumatic circuit;
★ Installation and commissioning of motor;
★ Connection and parameter setting of converter circuit;
★ Connection and parameter setting of control circuit of servo motor;
★ Connection and parameter setting of stepping control circuit;
★PLC programming and debugging;
★ Configuration of touch screen;
★ Installation and commissioning of ultrasonic welding mechanism;
★ Installation and commissioning of electrostatic generator;
★ PID adjustment of temperature;
★ Installation and commissioning of hot-pressing mechanism;
