Description

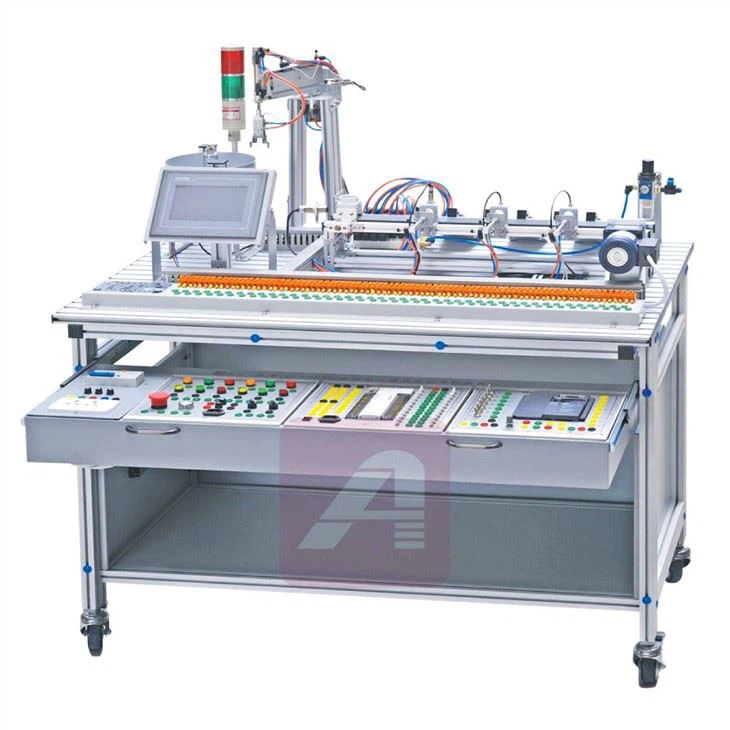

YL-235A Mechatronics Training Assessment Equipment is composed by the aluminum rail training station, mechanical components of the typical electromechanical integration equipment, PLC module unit, touch screen module unit, the inverter module unit, the button module unit, the power module unit, simulation production equipment training module, terminal blocks and a variety of sensors and other components.
The overall structure is open and removable. The training equipment is used for the assembly of mechanical components according to the mechanical parts of existing training equipment to assemble production training equipment, or can be added mechanical components to assemble other production training equipment, so that the whole device can be flexibly assembled into an electromechanical integration device with the simulated production function according to teaching and competition requirements. The modules use standard structure and the drawer-in module holder, interchangeable; you can determine the module content in accordance with principles of the production features and integration with learning functions, so as to easily select the desired module during teaching or competition.
The system includes multiple technologies such as motor drives, mechanical drive, pneumatic, touch screen control, programmable controllers, sensors, frequency speed regulation and many other technologies involved in electromechanical integration professional, which provides students a typical comprehensive environment so that students can get a comprehensive understanding of, consolidate, comprehensively train and practically apply the learned basic knowledge of single professional in the past.
Training items:
1. Pneumatic system installation and debugging:
1) Installation of pneumatic direction control loop
2) Installation of pneumatic speed control loop
3) Installation of swing control loop
4) Installation of pneumatic sequence control loop
5) Installation of pneumatic manipulator equipment
6) Installation and debugging of pneumatic system
2. Installation of electric control circuit and PLC programming
1) Motor rotary control circuit connect and control programming
2) Motor speed regulation circuit connect and control programming
3) pneumatic direction control programming
4) pneumatic sequence control programming
5) pneumatic manipulator control programming
6) belt conveyer control programming
7) Mechatronics equipment control programming
8) Automatic production line control programming
3. Electromechanical installation and debugging
1) adjustment the axiality of transmission gear
2) Installation and debugging of belt conveyor
3) Installation and debugging of transport manipulator equipment
4) Installation and debugging of material sorting equipment
5) Installation and debugging of feeding equipment
6) Installation and debugging of automatic production line equipment
4. Automatic system installation and debugging
1) Installation and debugging of kinds of sensors
2) automatic control of manipulator
3) automatic control of belt conveyor
4) automatic control of mechatronics
5) Installation and debugging of PLC control system
6) Installation and debugging of automatic production line
YL-235A Mechatronics Training Assessment Equipment is used for evaluation and skill competition, can test vocational ability :
1) Assemble and adjust ability of mechanical structure
2) Installation and debugging ability of electromechanical equipment
3) Circuit installation ability
4) Installation and debugging ability of pneumatic system
5) Programming ability of electromechanics equipment
6) Installation and debugging ability of automatic control system
