Description

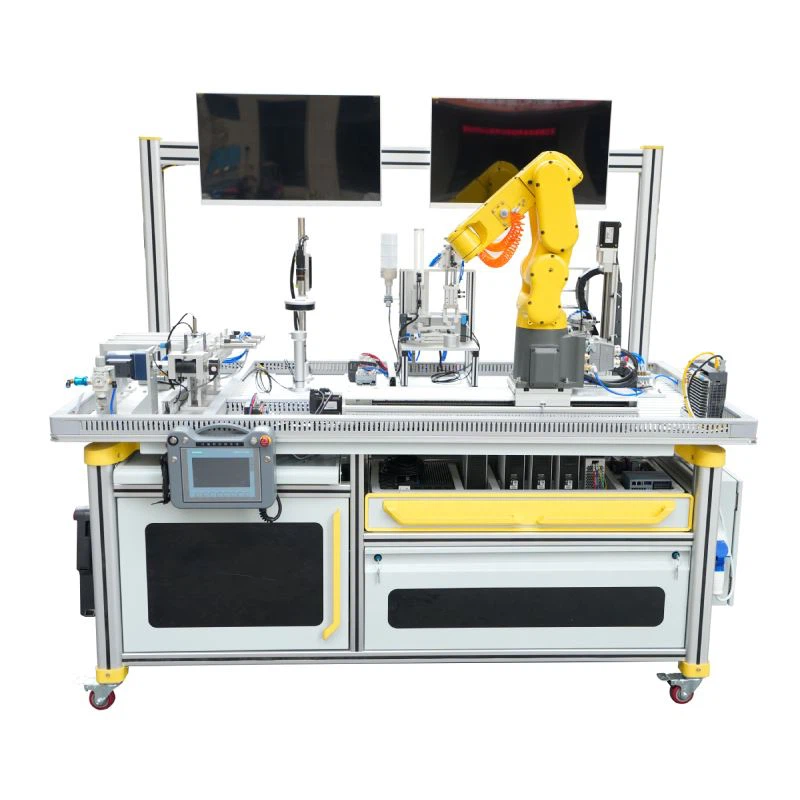

Yalong YL-335C Intelligent Manufacturing Technology Integration Application Innovation Platform consists of storage unit, assembly unit, visual unit, sorting unit and conveying unit which installed on an aluminum alloy rail-type training bench. Comprehensively utilizing industrial automation control, industrial Internet, image recognition, intelligent robot and other technologies, the platform integrates cloud platform data management and MES management system, which can realize real-time monitoring, scheduling and optimization of production sites, and integrates with digital twins to fit the development of the industry and the progress of intelligent manufacturing technology. Simulate the realization of intelligent, digitalization and flexible management of the entire production and manufacturing from customer orders to raw material supply, production and processing, product testing, logistics and warehousing.
Various types of sensors are used on the device to determine the moving position , passing through state, the color and material of an object, etc. Sensor technology is one of the key technologies in mechatronics technology and one of the prerequisites for modern industry to achieve high automation. In terms of control, the YL-335C adopts PLC network control solution with PROFINET communication, and each PLC is interconnected through PROFINET communication to achieve distributed control.
Training projects
1. Integration of mechanical technology (including pneumatic technology), sensor technology, industrial robot, AC motor frequency control and stepper motor drive control, touch screen technology, PLC control and communication network and other technologies, reflecting the characteristics of modern manufacturing production process.
Storage unit installation and commissioning training;
Visual unit installation and commissioning training;
Assembly unit installation and commissioning ;
Sorting unit installation and commissioning training;
Conveying unit installation and commissioning training ;
Intelligent production line control installation and commissioning training;
2. For teaching, it can plan teaching activities according to the work process orientation and the combination of work and study, and complete the following tasks:
1)Pneumatic system installation and commissioning:
2)Installation of electrical control circuit, robot and PLC program project:
3)Network communication technology:
4)Industrial network application
5)Information management training
6)Mechanical and electrical equipment installation and commissioning projects
3. This equipment is used for assessment or skill competition and professional abilities can be assessed:
1)Mechanical components assembly and commissioning ability ;
2)Mechanical and electrical equipment installation and commissioning ability;
3)Circuit installation ability;
4)Pneumatic system installation and commissioning ability;
5)Industrial robot installation and commissioning ability;
6)Visual system installation and commissioning ability;
7)The use ability of frequency converter in automatic production line;
8)The use ability of servo motor in automatic production line;
9)PLC analog control ability in automatic production line;
10)Mechatronics equipment control programming ability;
11)Automatic control system installation and commissioning ability;
12)PLC network installation, programming and commissioning ability;
13)HMI, cloud platform, configuration technology programming and commissioning ability
