Description

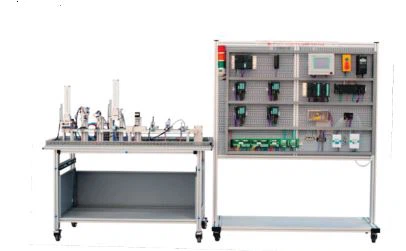

YL-335F Industrial Electrical Automation and Network Training System is installed on the Aluminum alloy guide type training platform, consisting of feeding unit, cleaning unit, filling unit, capping unit, labeling unit and sorting unit.Various types of sensors are used in YL-335F Industrial Electrical Automation and Network Training System, which is respectively used for judge the motion position of object, object material, the state of cylinder, etc.
Training project
YL-335F Industrial Electrical Automation and Network Training System is used in teaching to plan teaching activities according to work process-oriented, and work-integrated learning mode, then complete the following working tasks.
First, it integrates mechanical technology (including pneumatic technology), sensor technology, frequency conversion speed regulating technology of ac motor, servo stepping drive technology, touch screen technology, PLC control and communication networks technology, reflecting the characteristics of modern manufacturing process.
Second, it is used in teaching to plan teaching activities according to work process-oriented and work-integrated learning mode, and then complete the following working tasks.
It is in line with progressive teaching rules.
1）The installation and commissioning project of pneumatic system
You can complete the following work tasks of pneumatic technology by using the pneumatic actuators configured by the device and pneumatic control components, such as single control solenoid directional control valve and magnetic switch.
2）The installation of electrical control circuit and PLC programming projects
You can complete the following working tasks of PLC application technology by using PLC, frequency converter and sensor configured by the device.
3）The installation and commissioning projects of electromechanical equipment
You can complete the following working tasks of electromechanical equipment installation and mechatronics technology by using parts of mechatronics equipment, PLC, frequency converter, command switch and sensor configured by the device.
★Coaxiality adjustment of transmission device
★Mechanical installation and adjustment of feeding unit
★Mechanical installation and adjustment of cleaning unit
★Mechanical installation and adjustment of filling unit
★Mechanical installation and adjustment of capping unit
★Mechanical installation and adjustment of labeling unit
★Mechanical installation and adjustment of sorting unit
★Mechanical installation and adjustment of automatic production line control
3 To examine the professional ability
★Assembly and adjustment ability for mechanical components
★Installation and commissioning ability for electromechanical equipment
★Circuit installation ability
★Installation and commissioning ability for pneumatic system
★The ability to use frequency converter in automatic production line
★The ability to writing control program for mechatronics equipment
★Installation and commissioning ability for automatic control system
★Programming and debugging ability for Man-machine interface and configuration technology
