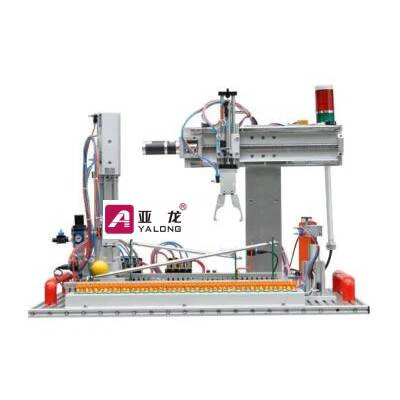

Circular Transport Automatic Control Trainer

Circular Transport Automatic Control Trainer

Through the training of the device, trainees can master relevant PLC control technology, sensor and encoder application technology, common motor control, and speed regulating technology, typical mechanical drive application technology and configuration monitor technology.

Ask for details
Category:
Brands:

Description

The equipment system simulates the transportation and handling process of the logistics transportation equipment in the industry, and completes the link input between the structures according to the flow of the workpiece logistics conveying. Adapt to the requirements of the teaching, conduct the transportation and handling of workpiece continuously to form the material handling circulation. It is mainly linear lead screw drive mechanism, guide rod manipulator machinery, corner manipulator handling unit, rotating manipulator handling unit, sliding rail conveyor mechanism, to complete the system transportation work.

Through the training of the device, trainees can master relevant PLC control technology, sensor and encoder application technology, common motor control, and speed regulating technology, typical mechanical drive application technology and configuration monitor technology.

List of Experiments

  1.   Installation and commissioning project of pneumatic system:1.1  Installation of pneumatic direction control circuit;

    1.2  Installation of pneumatic speed control circuit;

    1.3  Installation of swing control circuit;

    1.4  Installation of pneumatic sequence control circuit;

    1.5  Installation of pneumatic mechanical arm device;

    1.6  Installation and commissioning of pneumatic system;

2.  Installation of electrical control circuit and PLC programming:

2.1  Connection of motor forward and reverse control circuit and control program programming;

2.2  Pneumatic direction control program programming;

2.3  Pneumatic sequence action control program programming;

2.4  Pneumatic mechanical arm control program programming;

2.5  Mechanical arm circular transportation control program programming;

3.  Installation and commission project of mechatronics:

3.1  Adjustment of drive device coaxiality;

3.2  Installation and commissioning of handling mechanical arm;

3.3  Installation and commissioning of mechanical arm circular handling;

1.  AC power: Single phase AC 220±10% 50 Hz;

2.  Temperature: -10～50℃; environment humidity: ≤90％ no condensation of water drops;

3.  Dimension: 840×800×1500 (mm) (L × W × H);

4.  The apparent power of machine consumption: ≤ 1.0kVA;

5.  Safety: with grounding protection, electric leakage protection; use high insulation safety plug and high strength safety experiment wire with insulating sheath;
