Description
Equipment Brief Summary

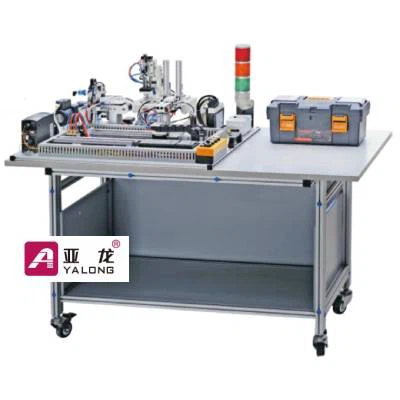

The equipment is for mechanical, modern automation control, sensor application technology and other technical applications, research and development direction of students, graduate students and teachers, to provide an open, technical practical training platform. The whole equipment can simulate the production process of the actual industrial automation production line. The training device is equipped with control unit, straight line handling unit, feeding unit, processing unit, sorting and storage for finished products unit in the aluminum alloy rail training platform, and they form a mechanical platform. The electrical part includes PLC, pneumatic system, servo control system, and all kinds of detection sensors. The transmission executive part includes screw drive. The drive part comprises pneumatic and servo motor drive, etc.
Device Characteristics
The whole device adopts miniaturization design, reasonable overall compact, cost-effective, and it is very suitable for schools in training, the number of teaching requirements for position.
1.The I/O terminal of the PLC module, the connection terminal of the servo driver, and the sensors terminals of each unit are connected to the line arrangement.It can flexibly connect the corresponding selection units according to the actual needs, not only to ensure the training of students’ basic skills, form and consolidate, but also to ensure the fast, safe and reliable connection of the circuit.
Training Projects
1. Automatic detection technology application training
2. Pneumatic technology application training
3. PLC programming training
4. Servo motor control application training
5. Servo drive application training
6. Detection sensor application training
7. Automatic control technology teaching and training
8. Mechanical system installation and commissioning training
9. System maintenance and fault detection training
Configuration
The device is equipped with PLC (Siemens PLC), pneumatic unit, sensor, pneumatic manipulator unit, feeding unit, conveying unit, sorting unit and other training units. The entire system is modular and open training platform. The training can be combined according to different training requirements.
The control system adopts programmable logic controller (PLC). The actuator consists of pneumatic pressure solenoid valve – cylinder driving device and screw rod transmission mechanism, to realize the continuous and automatic operation of the whole system. The signal control line and drive signal line are all introduced to the wiring board of the whole training unit, to make teaching flexible. Not only ensure the training of students’ basic skills, form and consolidate, but also ensure the fast, safe and reliable connection of the circuit.
