Description
Each work unit can form an independent system by itself, and it is also a mechatronics system. The actuators of each unit are basically pneumatic actuators, but the overall movement of the manipulator device of the conveying unit is driven by a servo motor, and the position control of precise positioning is adopted. The driving system has the characteristics of long stroke and multiple positioning points, which is a typical example. One-dimensional position control system. The conveyor belt drive of the sorting unit adopts an AC transmission device that drives a three-phase asynchronous motor with a general frequency converter. Position control and inverter technology are the most widely used electrical control technologies in modern industrial enterprises.
Features

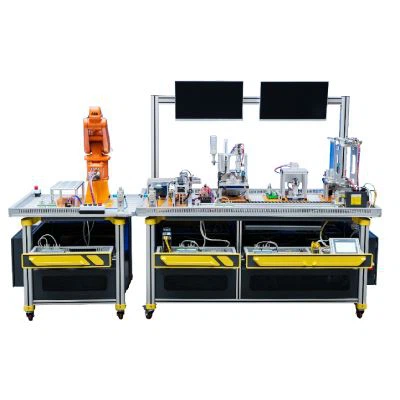

1. Yalong YL-335G automatic production line training and assessment equipment has the following outstanding advantages:
2. YL-335G basically contains the core knowledge points of higher vocational automation majors.
3. It has high flexibility and easy expansion, especially suitable for skill assessment and competition.
4. Easy to upgrade the 485 communication mode to fieldbus, remote I/O mode, etc.
5. The position control servo motor and stepping motor of the conveying station are easy to replace.
6. The upgrade of the workstation is also very easy.
7. Work flow from simple to deep, in line with teaching laws.
