Description

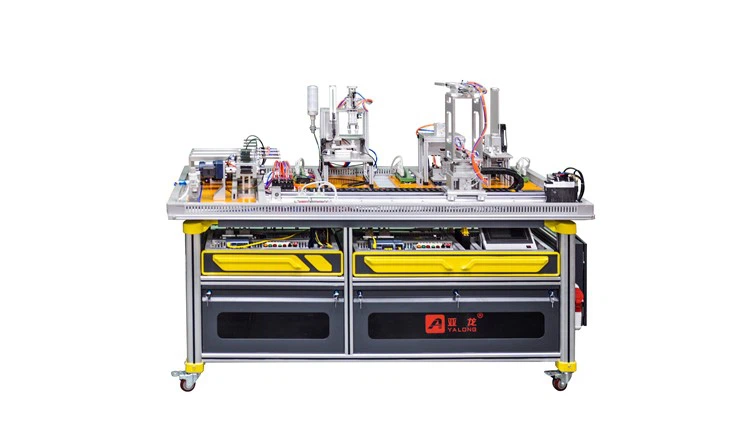

The YL-335B Automatic production line trainer is composed of feeding unit, processing unit, assembly unit, transmission unit and sorting unit. The electrical layout is in double-drawer; all electrical controllers are installed on the drawers, in accordance with the real industrial patterns.
Each unit is an independent system, as well as an electromechanical system. The executive mechanism of each unit is mainly based on pneumatic execution, but the mechanical arm movement of transmission unit adopts servo motor driving and precise position control, the drive system has the features of long travel and multi positioning points. The conveyor belt drive of sorting unit adopts general frequency converter drive 3-phase asynchronous motor. The position control and frequency converter technology is the most widely used electrical control technology in modern industry.
YL-335B Automatic production line trainerTraining contents :
1.It combines mechanical technology, sensor technology, AC motor variable frequency speed regulation and stepper motor drive control, touch screen technology, PLC control and communication network technology.
Feeding unit installation and debugging;
Processing unit installation and debugging;
Assembly unit installation and debugging;
Sorting unit installation and debugging;
Transmission unit installation and debugging;
Automatic production line control installation and debugging;
2. The whole structure is open, modules are replaced easily, the required modules can be selected conveniently for teaching and competition:
Replace and expand working unit;
Electrician is updated to field bus;
Position module to control servo motor;
3. Used for teaching, complete the following tasks:
1) Pneumatic system installation and debugging:
Pneumatic direction control circuit installation;
Pneumatic speed control circuit installation;
Swing control circuit installation;
Pneumatic sequence control circuit installation;
Pneumatic mechanical arm installation;
Pneumatic system installation and debugging;
Pneumatic system design and installation;
2) Electrical control circuit installation and PLC programming:
3-phase motor positive and reverse rotation control circuit connection and control programming;
3-phase motor control circuit connection and control programming;
Motor speed control circuit connection and control programming;
Frequency converter analogy control connection and control programming;
Servo motor control circuit connection and parameter setting;
PLC control network control technology;
Pneumatic direction control programming;
Pneumatic sequence control programming;
Pneumatic mechanical arm control programming;
Belt conveyor control programming;
Electromechanical equipment control programming;
Automatic production line control programming.
3) PLC communication network installation, programming and debugging:
PLC control technology—485 communication technology programming and debugging
4) Electromechanical equipment installation and debugging
Transmission coaxality adjustment;
Feeding unit mechanical installation and adjustment;
Processing unit mechanical installation and adjustment;
Assembly unit mechanical installation and adjustment;
Sorting unit mechanical installation and adjustment;
Transmission unit mechanical installation and debugging;
Automatic production line installation and debugging;
4. The equipment is usded in assessment and competition:
Mechanical parts assembly and adjustment capability;
Electromechanical equipment installation and debugging capability;
Circuit installation capability;
Pneumatic system installation and debugging capability;
Frequency converter automatic production line operating capability;
Servo motor automatic production line operating capability;
PLC analogy control in automatic production line operating capability;
Electromechanical equipment control programming capability;
Automatic control system installation and debugging capability.
PLC network installation, programming and debugging capability;
Human-machine interface, configuration technology programming and debugging capability.
