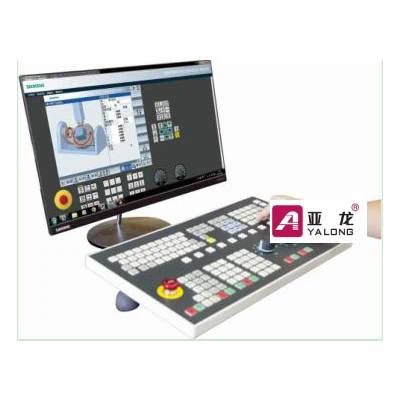

Siemens Standard 5-axis CNC Panel

Description

The key position layout in the Siemens Standard 5-axis CNC Panel is consistent with the machine tool panel in use. Users are easy to use. When scholars first learned the operation of high-end CNC machine tools, they could first learn from this unit and then operate the machine. This greatly reduces the collision accident caused by the mis-operation of the novice machine and reduces the collision risk of the machine tool.

Function description

Siemens Standard 5-axis CNC Panel is based on Siemens 828D system and 840Dsl system. It has the function of programming, processing and debugging system, and can realize the simulation operation of NC lathe, NC milling and machining center. It can be manually programmed or read into CAM NC program for simulation processing.

The size of the Siemens Standard 5-axis CNC Panel is 525×294×60mm. The buttons of the unit consist  of 101 white keys of 15* 15mm, 33 grey keys of 15mm * 15mm, 6 green buttons of 15mm * 15mm, 5 red uttons of 15mm * 15mm,5 pale green buttons of 15mm *15mm and 2 yellow buttons of 15mm * 15mm. The key position layout of this unit conforms to the standard layout of Siemens operation panel and adopts industrial-level keys. It has the same operating hand feeling as the real machine tool panel, equipped with user to operate the machine tool in an immersive manner, laying the foundation for the future operation of real high-end CNC machine tools. It reduces the loss of machine tool caused by misoperation. At the same time, it can also verify the correctness of the NC program, reduce the risk of the first part debugging, and increase the credibility of the program. It can simulate the actual movement of NC machine tool, check the potential collision error, and reduce the risk of machine tool collision. It can optimize the process, improve the processing efficiency and extend the tool life. The machine tool data of this product is exactly the same as that of Siemens system, and parameters can be modified (such as general machine tool data, shaft machine tool data, shaft setting data, etc.).

Configuration
