Cnc Educational Training Machine

Description

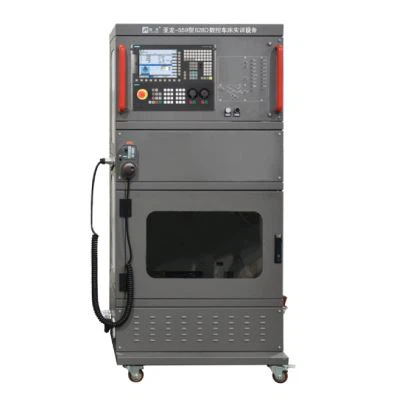

YALONG YL-559 828D NC lathe training equipment consists of control rack, NC system, PLC unit, servo feeding unit, machine control circuit, servo transformer, electrical installation mesh plate. Each feeding axis is controlled by servo motor, the spindle is controlled by frequency converter ,with 4-position electric tool holder, according to job skills requirements ,CNC machine installation and commissioning, parameter setting, servo performance optimization, data backup, PLC programming, fault diagnosis and maintenance, CNC programming operation can be carried by students. The vertical structure is accord with the real NC electrical installation environment, more suitable for the actual job requirements for skills training.

YALONG YL-559 828D NC lathe training equipment intelligent fault maintenance system through fault generation, fault analysis, fault diagnosis, line inspection and fault point determination to train NC machine tool maintenance ability of students.

The power supply is equipped with leakage switch and default phase protection circuit, which automatically operates in case of leakage, short circuit, default phase and equipment protection circuit. The rotating part of the motor is equipped with plexiglass safety protection.

The Yalong YL-559 828D NC Lathe Training Equipment is suitable for teaching and practical training in:

• Higher vocational schools and secondary vocational schools
• Majors such as:

○Installation & Maintenance of Electromechanical Equipment

○Electromechanical Technology Application

○Electrical Operation & Control

○Electrical Technology Application

○CNC Technology Application

○Mechanical Machining

• Non-electromechanical majors (as part of compulsory or elective courses)
• Key course modules, including:

○CNC Equipment Maintenance

○CNC Machining Technology (compulsory)

○Machine Tool Circuit Maintenance (elective)

This system provides hands-on training aligned with vocational education requirements in industrial automation and precision manufacturing.

Yalong YL-559 828D NC lathe training equipment is also suitable for internships in courses such as “Electrical Equipment Maintenance” and “CNC Equipment Maintenance” for mechanical and electrical majors in technical schools. It is also suitable for advanced classes of maintenance electricians, technician classes of maintenance electricians, advanced technician classes of maintenance electricians, and training and professional skills appraisal of CNC installation and maintenance workers in vocational training schools.

CNC machine programming training:

CNC machine programming training

CNC machine electrical part training:

CNC machine electric control principle

CNC machine common control circuit

CNC machine electrical composition and hardware structure

CNC machine electrical control and PLC learning

Spindle and feeding axis control learning

CNC machine control circuit installation training

Electrical schematics and assembly drawings reading and drawing

Parameter setting of spindle, feeding axis, system, servo drive and etc

Data backup

Basic function debugging of the modules of spindle, feeding axis, tool post and cooling

Function debugging of the modules of spindle, feeding axis, tool post, cooling, limit axis, zero return.

Intelligent fault setting and faults diagnosis maintenance

Configuration
