Description

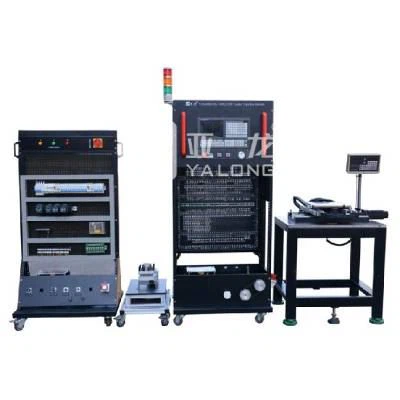

YL-569C 980TDi CNC Lathe Machine Comprehensive Training Equipment is mainly composed of electrical control unit, electrical installation unit and cross slide unit.
Training Content
1. CNC machine tool programming training
1) CNC machine tool programming training;
2) Fully automatic operation training;
3) Auxiliary system control programming operation training;
4) Processing load optimization operation training;
5) CNC machining process control training;
6) Simulation of CNC system machining tool path.
2. Practical training in the electrical part of CNC machine tool
1) Principle of electrical control of CNC machine tool;
2) Common control loops of CNC machine tool;
3) Electrical composition and hardware structure of CNC machine tool;
4) CNC machine tool control circuit installation training;
5) Identification and drawing of electrical schematic diagrams and assembly drawings;
6) Parameter settings for spindle, feed axis, system, servo drive, etc.;
7) Optimization and debugging of the function parameters of the feed axis;
8) Optimization and debugging of spindle function parameters;
9) Servo system configuration parameter setting and debugging;
10) Basic functions debugging of spindle, feed axis, tool holder, cooling and other modules;
11) Function debugging of modules such as spindle, feed axis, tool holder, cooling, soft limit of each axis, and zero return;
12) Study of electrical control of CNC machine tool and PMC;
13) Data backup;
14) PMC program design and development;
15) PMC feed rate program design and programmingdebugging;
16) PMC spindle rate program design and programmingdebugging;
17) PMC auxiliary functionprogram design and programming debugging;
18) Encoder principle learning and characteristic research;
19) Learning of machine tool pre-judgment diagnosis function;
20) Functional design and development of CNC machine tool;
21) Intelligent fault setting and fault diagnosis and maintenance (including software and hardware).
