Description

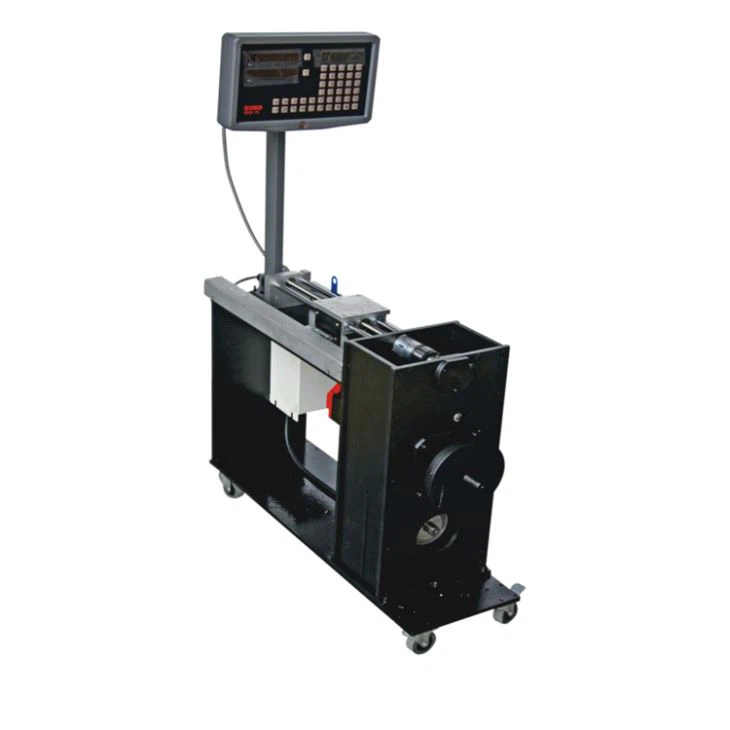

YL-550 servo motor Load CNC education equipment consists of single coordinate CNC slide、grating ruler unit、module loading unit、load-simulating unit、Inertia flywheel unit and motion-work wheel. It can be used for parameter optimization、amplitude frequency characteristic analysis of servo motor, also for understanding the influence on workpiece with the adjustment of servo motor.
The module is made up of steel plate, rolling wheels are installed under the bottom, easy to move, transmission、loading and inertia of servo motor work together to form motion-work wheel set, training items like load and inertia can be done by them, on the back, ball screw and grating ruler detection are installed for the purpose of training precision measurement.
Functions
Feed parameters setup
Load capacity test
Inertia performance test
