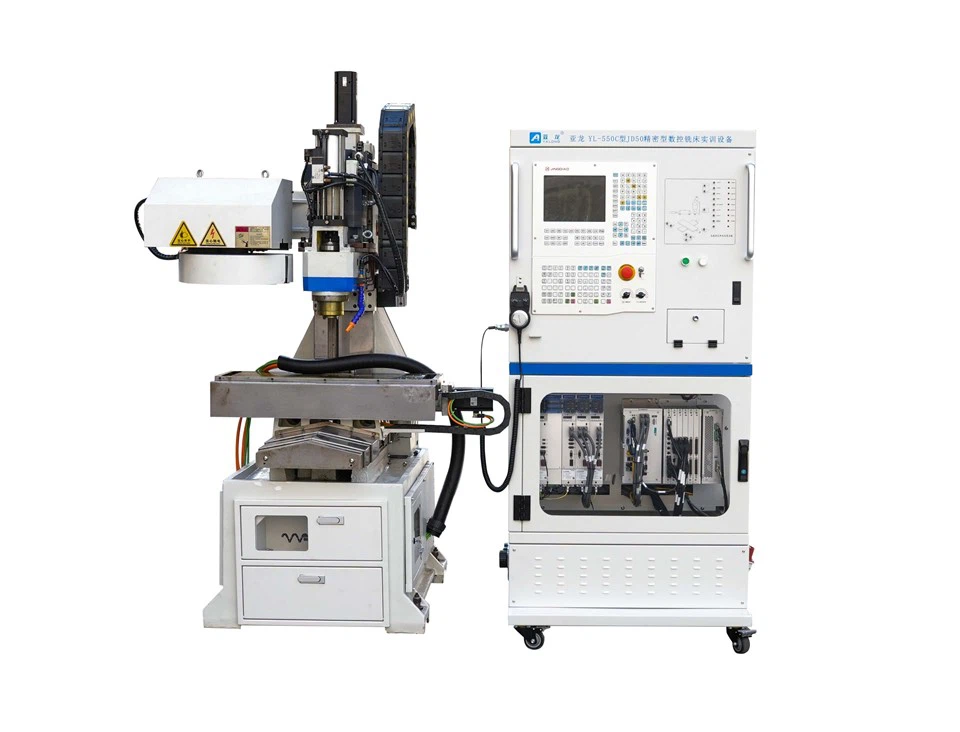

YL-550C JD50 Precision CNC Milling Machine Training Equipment Product Overview To meet the demand for complex parts processing in intelligent manufacturing, address the talent shortage following the breakthrough in domestic 5-axis technology, and solve the disconnect between traditional machine.

Ask for details
Category:
Brands:

Description

To meet the demand for complex parts processing in intelligent manufacturing, address the talent shortage following the breakthrough in domestic 5-axis technology, and solve the disconnect between traditional machine tool training and industrial requirements, it is necessary to develop 5-axis training equipment. This helps cultivate skilled talents matching industrial needs, supports the self-reliance and controllability of the industrial chain, and effectively reduces the space occupation cost of 5-axis machine tools.

This training equipment is developed based on the Beijing Jingdiao JD50 CNC system, adopting a structural design of “separated electric cabinet + 5-axis machining center”. It not only meets the core functional requirements of industrial-grade machining centers, but also fits the demands of “modular operation and hierarchical training” in practical teaching.

Equipped with a cradle-type double rotary axis, the equipment forms a 5-axis linkage structure consisting of X/Y/Z linear axes plus A/C rotary axes. As an executive and auxiliary component, it meets the basic 5-axis machine tool training requirements, and can simulate industrial-grade processing scenarios such as multi-surface machining of complex curved parts with one-time clamping and spatial angle cutting.

Teaching AdaptabilityThe electrical cabinet adopts a split layout with transparent observation windows on all sides, enabling intuitive monitoring of module wiring and operating status. All electrical components are installed on standardized rails, supporting independent disassembly for convenient practical training.
Safety ComplianceEquipped with comprehensive protection; high-voltage components are covered with anti-electric shock shields to ensure safe training operations.
Convenient Disassembly & AssemblyThe electrical cabinet is connected to the machine tool via aviation plugs, adapting to the frequent disassembly and long-term usage requirements in training scenarios.
Chip Protection & Teaching TransparencySemi-protective structure is configured to block flying chips during machining, preventing injury to operators and environmental contamination, while preserving clear visibility of key operating areas and observation angles.
Space Adaptability & Dual BenefitsEquipped with a cradle-type rotary table integrating A/C dual rotary axes to realize 5-axis simultaneous machining. The compact design reduces the footprint significantly, easing constraints on teaching space while balancing practicality and space utilization.
Flexible ExpansionConfigured with a 3-jaw chuck for quick workpiece clamping and self-centering.
From Signal Simulation to Logical UnderstandingA teaching PLC signal board is provided to help trainees understand PLC control logic, supporting multi-stage teaching.
Servo Tool ChangerStable high-frequency tool change accuracy with zero-point memory, meeting the frequent tool change demands of complex parts, with high automation level and improved production efficiency.
High Speed & High PrecisionEquipped with a water-cooled motorized spindle, featuring ultra-high rotational speed to adapt to diverse precision machining training scenarios.
