Description

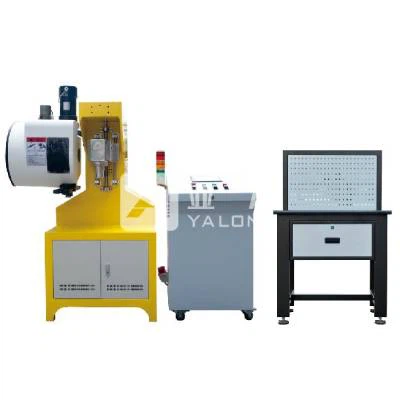

The YL-551JS CNC Profi Trainer adopts a modular design and is mainly composed of a tool magazine training platform, a mechanical disassembly training platform, and an electrical control training platform. The equipment adopts an open design, and students can simulate the tool change process in CNC machine tools on the equipment, so as to better cultivate students’ practical ability and analytical ability.
YL-551JS CNC Profi Trainer Equipment training project
1. Mechanical disassembly and precision testing training of manipulator tool magazine
2. Spindle mechanical disassembly and precision inspection
3. The tool arm of the manipulator tool magazine is adjusted concentrically with the spindle center
4. Tool change program design and debugging of the tool magazine
5. Programmable logic controller design and programming training
6. Level debugging and adjustment training
7. Tool magazine circuit design training
8. Embedded integrated touch screen programming training
9. Learning the principle of ATC mechanical structure of automatic tool changer
