Description

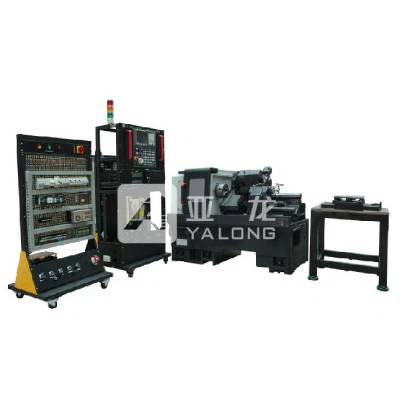

YL-569 CNC Maintenance Trainer consists of electrical control unit, electrical installation training unit, production-oriented slant bed CNC lathe, and cross slide functional component, and measuring tool, etc.
CNC Maintenance Trainer
YL-569 consists of electrical control unit, electrical installation training unit, production-oriented slant bed CNC lathe, and cross slide functional component, and measuring tool, etc.
Parameter of lathe
1) Max. rotating diameter: φ460mm;
2) Max. machining diameter:φ400mm;
3) Max. machining diameter on knife rest:φ170mm;
4) Max. machining length:350mm;
5) Distance between centers:370mm;
6) Dimension of chuck: 6″manual chuck;
7) Spindle type: ISOA2－5;
8) Rotating range of spindle:50～5000r/min;
9) Spindle through-hole diameter:φ56mm;
10) Latus rectum of bar stock:φ42mm;
11) Min. resolution ratio: 0.001mm;
12) Rapid moving speed: X axis 15 m/min; Z axis 18 m/min;
13) Cut feeding speed: 0～5000 mm/min;
14) X/Z axis max. stroke: X axis 210mm, Z axis 410mm;
15) X/Z axis connection type: direct connection;
16) Spindle servo motor power: 5.5kw-7.5kw;
17) Spindle lubrication
18) 6-position electric knife rest;
19) Lathe bed type/inclination: integral/30°;
20) X/Z axis guide rail type: linear guide rail;
21) X/Z axis lead screw form: ball screw;
22) Environment temperature: 0～40°C;
23) Humidity:≤85%;
4. Parameter of cross slides functional components
1) Power: three-phase five-wire AC 380V±10% 50Hz;
2) Dimension:800×600×1400mm (L*W*H);
3) Lead screw stroke:280mm;
4) Parameter of lead screw (diameter mm/screw pitch mm):16/05;
