Description
With the introduction of high-tech strategic plans such as “Made in China 2025” (China), “Industry 4.0” (Germany), and “Advanced Manufacturing Partnership Program” (U.S.), electronic technology and automation technology are developing rapidly. The application is also more and more extensive. Numerical control equipment based on microprocessors and marked by large-scale integrated circuits has been mass-produced, introduced, and promoted in China. They have created conditions for the development of the machinery manufacturing industry and brought great benefits. Due to their advanced nature, complexity and high intelligence, they have undergone major changes in maintenance theory, technology and methods. CNC maintenance technology is not only a prerequisite for normal operation, but also plays an important role in the development and improvement of CNC technology. To a huge boost. But at the same time, the lack of maintenance technicians and maintenance platforms makes CNC maintenance technology also face unprecedented challenges.

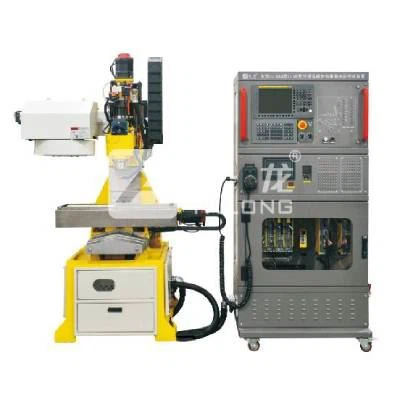

YL-59A 0i MF CNC machine tool maintenance training system is a multi-functional CNC repair platform, which not only solves the difficulty of school teachers in teaching CNC repair courses, but also makes students more intuitive and clearer Of learning CNC maintenance technology.
The YL-59A 0i MF CNC machine tool maintenance training system can be applied to numerical control maintenance and also suitable for the teaching of numerical control processing, thus realizing a platform for multiple purposes.
YL-59A 0i MF CNC equipment maintenance and repair training assessment device is mainly for CNC equipment electrical installation and adjustment, CNC equipment after-sales service and technical support of CNC equipment manufacturing enterprises, and CNC equipment maintenance and repair of machining enterprises. Engaged in electrical installation and debugging of numerical control equipment, fault inspection analysis and repair of numerical control equipment, PLC program development and diagnosis of numerical control equipment, function debugging and adjustment of numerical control equipment, precision inspection and optimization of numerical control equipment, and debugging and maintenance of intelligent manufacturing production line.
Equipment training project
Basic skills training:
a) Able to correctly understand the technical information related to the query
b) Able to correctly identify and use tools for training
c) Able to properly clean and manage tools and measuring tools
d) Able to judge and identify the specifications of the numerical control device
e) Able to query the hardware and software specifications of the CNC device through the CNC system screen
f) The memory card can be used to back up and restore the overall data of the numerical control device
g) Able to judge and identify the specifications of servo units, motors, and encoders
h) Able to query the hardware and software specifications of the servo unit through the CNC system screen
i) Able to monitor the running status of the servo motor through the servo monitoring screen
j) Able to judge and identify the specifications of the spindle drive unit, motor and sensor
k) Able to query the specifications of the spindle drive unit, motor, sensor hardware and software through the operation of the CNC system screen
l) Ability to monitor the running status of the spindle motor through the spindle monitoring screen
m) Ability to judge and identify power supply unit specifications
n) The power supply unit specification can be inquired through the operation of the CNC system screen
o) Able to monitor the position of the machine tool through the operation of the CNC system screen
Maintenance and maintenance of CNC machine tools:
a) Able to perform maintenance work on CNC machine tools according to the requirements and steps of the maintenance manual and instruction manual
b) Ability to periodically replace the battery of the CNC device and servo unit according to the instruction manual
c) Able to clean the cooling fan of the CNC device, servo unit and electrical control cabinet regularly
d) Able to correctly fill in equipment maintenance records
e) Be able to clean CNC machine tools regularly, and apply lubricating oil and anti-rust oil to transmission parts, worktables and spindles
f) Regularly check the sensor on the machine tool and be able to replace it
