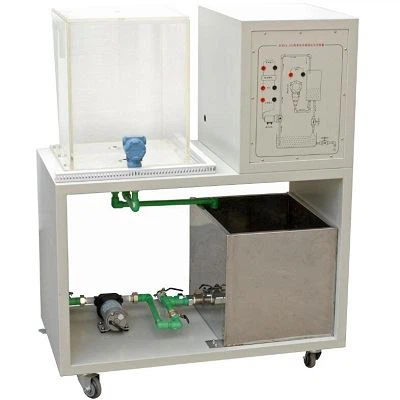

Single-capacity Tank Fluid Level Training Device

Single-capacity Tank Fluid Level Training Device

The equipment is suitable for sensor detection technology, process control, programmable controller and its application, electrical control technology, mechanical workers vocational skills training materials.

Ask for details
Category:
Brands:

Description

This equipment is to expand the PLC training platform training function, according to the teaching and training requirements of vocational schools, combined with the actual production and vocational skills requirements, the development and development of products.

The equipment is suitable for sensor detection technology, process control, programmable controller and its application, electrical control technology, mechanical workers vocational skills training materials.It is also a platform for students to carry out engineering training, graduation design and course design.Engineering training and technical practice are also available.Course knowledge covered by the installation system: process control;Automatic instrumentation and detection sensing devices.

Training project

YL-266 single tank liquid level training device, Training items:

1. Practical training of sensor (pressure transmitter) application technology

Through the project training, master the knowledge and skills of commonly used detection components in the automatic control system;

2. Dc governor

Through the practical training of this project, I have mastered the knowledge and skills of installation and debugging of common mechanism components in the automatic control system.

3.Dc water pump training

Through the practical training of this project, I have mastered the knowledge and skills of installation and commissioning of DC water pump in the automatic control system.

1. AC power supply: single-phase AC 220V ±10% 50Hz;

2. Temperature: -10 ~ 50℃;Ambient humidity: ≤ 90% condensation without water droplets;

3. Overall dimension: Length × width × height =620mm×450mm×60mm;

4. Overall power consumption: ≤ 1.0kVA;

5. Safety protection measures: The table top of the training table is made of high-density board with high insulation, high strength and high temperature resistance.It has the functions of grounding protection and leakage protection, and its safety conforms to relevant national standards.Adopt high insulation safety type socket and high strength safety type test wire with insulation jacket.
