Description

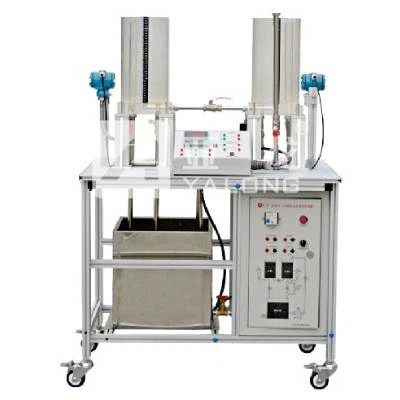

The YL-367 Coupled-Tank Control Apparatus is equipped with two control water tanks, water storage tanks, diaphragm pumps, liquid level transmitters, and solenoid valves for switching pipeline states. The entire experimental system adopts an integrated structure and is open on all sides, which not only ensures the clean and beautiful appearance of the experimental system, and meets the aesthetic requirements of modern laboratories, but also allows students to see each component of the experimental system and enhance students’ perceptual understanding of the experiment.
The experimental water is supplied to the control water tank by the driving amplifier through the diaphragm pump and the valve. The entire pipeline system can be combined into different experimental loops through the on-off switching of the solenoid valve.
Generally, the control parameters of industrial objects vary in a wide range. The experiment is designed to provide setting options and PID parameters to meet different control requirements by setting different parameters.
This YL-367 Coupled-Tank Control Apparatus has different controlled models, either first-order (single-capacity) or second-order (dual-capacity). Different experiments can be performed by switching through the man-machine interface.
