Description

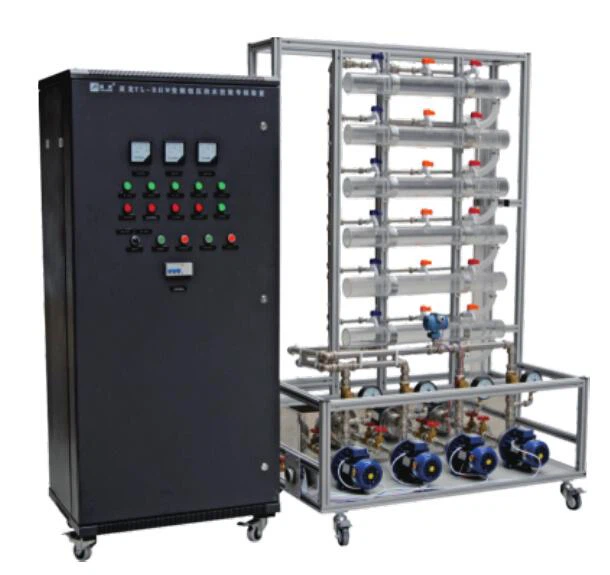

The device integrates PLC, variable frequency speed regulation, process control and engineering configuration technology.It consists of six floors of residential fire control, domestic water supply system (mock-up) and control platform, including programmable controller, frequency converter, variable frequency magnetic drive pump, hibernate pump, fire pump, pressure transmitter, pressure meter, water conveyer, fire hydrant, household faucet, reservoir and other engineering equipment.The control platform adopts the open control structure of PLC+ inverter, which can complete the practical training of floor constant pressure water supply under various modes, providing an open operation platform for teaching and research on variable frequency constant pressure water supply technology.
Function
Control panel structure
Single pump control constant pressure water supply
Double pump handover constant pressure water supply
Domestic water system static pressure control
Domestic water system dynamic pressure control
Domestic water system timing-sharing control
Water supply under night sleep mode
Fire protection state control
Integrated control system
