Description

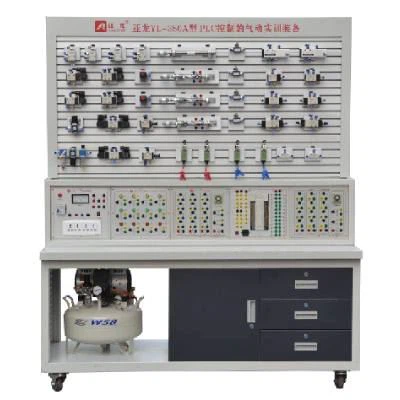

YL-380A PLC Pneumatic Practical Training Device features
The pneumatic practical Training device is designated for vocational schools and technical colleges, targeting courses such as Pneumatics, Pneumatic Control Technology, and so on. We collected advises from professors around China, and specifically designed this duo sided pneumatic teaching device.
This device can cover pneumatic transmission and transmission relay control, PLC control, sensor technology training. It is a integration of pneumatic technology and all kinds of modern control technology. This practical training platform is duo sided, thus one device can serve 2 students, and perform difference experiment in the same time, increases the utilization rate, and saves the training room space.
YL-380A PLC Pneumatic Practical Training Device content:
Pneumatic practical training content:
1.Single acting cylinder change-over circuit
2.Double acting cylinder change-over circuit
3.Single acting cylinder speed control circuit
4.Double acting cylinder one-way speed control circuit
5.Double acting cylinder two-way speed control circuit
6.Speed commutation circuit
7.Buffer circuit
8.Secondary pressure control circuit
9.High and low voltage converting circuit
10.Timer circuit
11.Delay circuit
12.Overload circuit
13.Interlock circuit
14.Single cylinder single stroke control circuit
15.Single cylinder continuous stroking action circuit
16.Linear cylinder and rotary cylinder sequence action circuit
17.Multiple cylinder sequence action circuit
18.Duo cylinder synchronous action circuit
19.Four cylinder synchronous action circuit
20.Unloading circuit
21.Or-gate shuttle valve application circuit
22.Rapid exhaust valve application circuit
23.Relay control sequence action circuit
24.PLC control limit switch squence action circuit
25.PLC control continuous stroking action circuit
26.PLC control delayed signle stroke action circuit
27.Two-position three-way pressure sequence valve control circuit
Pressure relay control circuit
