Description

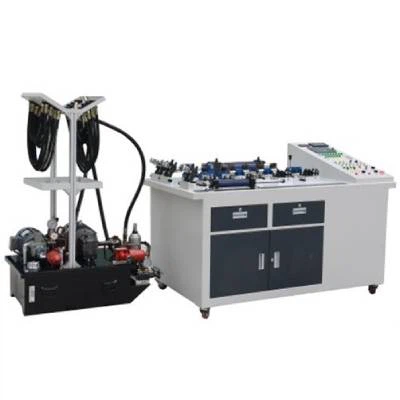

YL-386A hydraulic trainer main feature
1. The system all adopts standard industrial hydraulic components: safe and reliable to use, close to industrialization. All hydraulic valves adopt internationally advanced Rexroth technical hydraulic components, and their performance parameters are in full compliance with the requirements of the syllabus and in full compliance with industrial application standards;
2. The experimental circuit is plug and play: experimental students can quickly understand the functions of the experimental platform, quickly master the operating skills, and quickly complete the experimental operations. The connection method adopts quick-change joints, and each joint is equipped with a one-way valve with a self-locking structure (even if the joint is not connected and falls off during the experiment, there will be no pressure oil sprayed to ensure the safety of the experiment), internal sealing material The use of the latest international sealing material-PTFE seal ring, instead of the traditional nitrile material, solves the oil leakage problem that most other manufacturers have not overcome, and ensures the cleanness of the experiment process;
3. Diversified experimental control methods: The experimental loop can use various control technologies such as mechanical control, traditional relay control, advanced PLC automatic control, etc., so that students can have a comprehensive and multi-level in-depth understanding of the diversified control of the hydraulic system, thereby Exercise students’ flexible application ability;
4. The experimental equipment has a lot of room for expansion: the experimental configuration plan can be configured according to specific requirements, and components and other control methods can also be added to the experimental equipment to enhance the function of the experimental platform. The newly added component test benches are compatible;
5. The programmable controller (PLC) can communicate with the PC: realize electrical automation control, online programming monitoring and fault detection, and can use PC and PLC to carry out in-depth secondary development of the hydraulic control system, etc.;
6. The mobile modular design of the experimental platform: The design of the experimental platform not only integrates ergonomics, internationally popular design concepts, product characteristics and other factors, as far as possible to make the experimental platform beautiful and light, in line with the aesthetics Requirements, and there is no ambiguity about the reliability, safety, service life and other issues of the test bench, breaking the traditional design concept;
7. Abundant configuration simulation software: Provides up to 20 simulation/monitoring common loops. The loop can monitor the movement of each valve core, fluid flow, pressure, actuator movement, and PLC I/O interface input / Output situation. Various monitoring conditions are visually displayed on the monitoring screen in the form of picture color distinction/text, which is very intuitive and clear;
8. Equipped with advanced high-precision measuring instruments: high-stability data measuring instruments, replacing traditional measuring tools, simple to use, accurate and reliable;
9. Stable and reliable data acquisition system: Imported 12-precision 8-channel I/O AD data acquisition card is used to ensure accurate data in the experiment, less interference, and higher stability than other similar products. The I/O channel can be expanded as needed, and the operation is simple and convenient. The software adopts a genuine system with independent intellectual property rights and stable performance. It can draw real-time curves, generate reports, and generate X-Y curves as needed. The data is accurate and the system is stable;
10. Excellent hydraulic oil supply system: The hydraulic oil pump adopts flange installation method, which greatly reduces the noise of work and operation, and the hydraulic oil supply system adds a safety valve on the conventional basis, which plays a secondary protection role and ensures The safety of the experiment;
11. High safety level: The design of the test bench is fully implemented in accordance with national safety standards. All electrical controls have functions such as grounding protection, overload protection, short-circuit protection, and leakage protection, which have high safety performance.
