Description

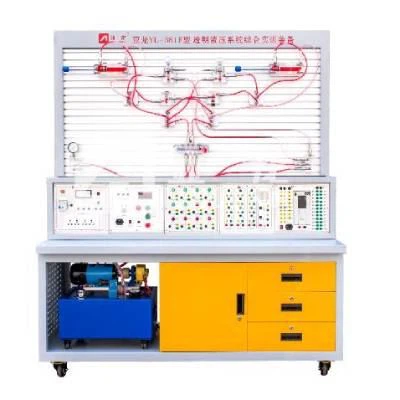

YL-381F Hydraulic Training Kit named transparent hydraulic test bench is a professional design and visualization of hydraulic experimental platform. its purpose is in to be convenient to internal structure and working principle of various hydraulic components in the hydraulic teaching class, every transparent hydraulic component is designed according to actual internal structure of Industrial hydraulic components. It actually reflects tectonic principle and work principle of Industrial hydraulic components. All hydraulic components are made with imported transparent organic glass material, high diaphaneity, not yellowing, small volume light weight etc, and can use the transparent characteristics to do teaching and explaining in structure of single hydraulic components, work principle and function. Also can constitute any fundamental circuit to survey Movement situation of spool in the loop tank and flow direction of fluid in the spool body. It can satisfy the teaching of the different hydraulic tests and different students. To use the combination of PLC and hydraulic in the system can achieve Automatic hydraulic control experiment teaching.
Hydraulic Training Kit shape, structure design of this equipment is different to Hydraulic training device. The control module part id designed in training screen below, this can avoid affecting action of hydraulic cylinder when the electrical control circuits connect, and also makes the whole training platform more beautiful and neat.
Advantages
1) Hydraulic components use rapid joint can inserted type, convenient students rapidly realized content in experimental process
2) The components small volume, light weight, small, startup and inertia braking speed.
3) With simple structure of hydraulic cylinder can achieve linear reciprocating motion easily.
4) Easy to realize automation, convenient adjustment, simple operation.
5) Experiment assembly experiment circuit quick, convenient, Experimental loop clear
6) Electrical and PLC control adopts module combined structure, convenient operation, the overall simple structure, good practicability
7) Liquid gas system of various components, with the equipment requirements, any arrangement.
8) Circuit experiment adopts leak proof fast inserted interface makes experiment circuit assembly simple, quick, clean
9) All the hydraulic components internal adopts CNC processing and surface finishing grinding process, machining precision 0.5 silk above, makes the hydraulic components internal leakage small, working performance good, All transparent visual part adopts the multi-channel polishing process, diaphaneity is better,
10) Using the programmable controller control (PLC), optimizing the control plan
11) All hydraulic components fixed floor adopts quick type slab fixed, uninstall convenient
Training item
★ With change valve of reversing circuit
★ Use “O” type function of the change valve closure circuits
★ Hydraulic control one-way valve shutting circuit
★ Pressure adjustment circuit
★ Secondary stress circuits
★ Reducing pressure valve hydraulic circuits
★ Pressurized cylinder of intensification circuits
★ Change valve to unload the circuits
★ Oil in throttling speed circuits
★ Return oil throttle speed circuits
★ Variable pump speed circuits
★ Variable pump and speed control valve of composite speed circuits
★ Flow valve short-circuited speed change connect circuits
★ Second feeding circuit
★ Use order valve order action circuits
★ Pressure relay sequence of movement circuits
★ Appliances travel switch sequence of movements circuits
★ Use journey value sequence of movements circuit
★ PLC control of travel switch order action circuits
★ PLC control of the pressure relay sequential action circuits
