Description

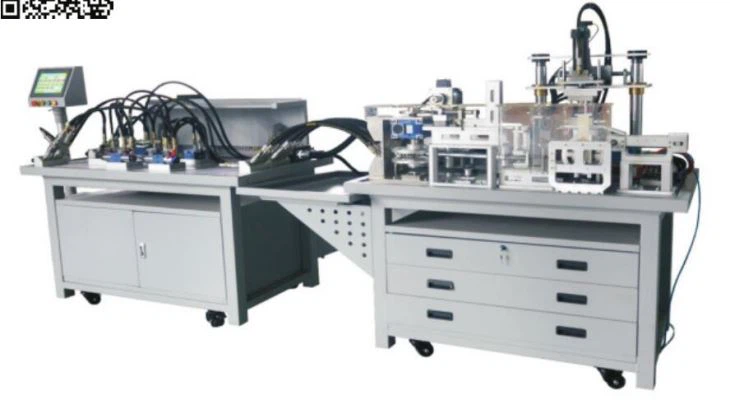

The equipment includes hydraulic and pneumatic transmission control technology, mechanical transmission control technology, frequency conversion motor control technology, touch screen control technology and so on.The mechanical transmission control technology also includes belt transmission (triangle belt, synchronous belt, flat belt), reducer transmission, connecting rod transmission, eccentric wheel transmission, groove wheel transmission and other mechanical transmission.It is a new type of compound teaching equipment, which integrates many kinds of technology and integration. It is not only a competition equipment, but also suitable for teaching and training in various universities.
3d renderings
Product features
1. Close to the industrial site: the real site level hydraulic pump station is designed in accordance with the industrial level standards. The hydraulic and pneumatic components are made of domestic well-known brands, and the hydraulic proportional valve and stacked valve are used to integrate with the industrial application.The training device adopts typical industrial control device, which is close to the actual application of the industry.
2. Flexible system combination: modular structure design is adopted, modules can operate independently between modules, or can be combined into a comprehensive control system by several modules to facilitate the upgrade and expansion of equipment.
3. Strong comprehensiveness: the system integrates various mechanical drives, industrial hydraulics and pneumatics components, relay control units and PLC control units. It is a typical electro-hydraulic integrated comprehensive training equipment, which can not only meet basic hydraulic practical training, but also complete engineering training and vocational skills competition.
4. Strong practical operation: set various practical work tasks according to relevant national occupational standards, industrial standards and job requirements, take professional practice activities as the main line, and truly improve students’ practical skills and employability through “doing middle school”.
5. Low noise: the motor is connected with the pump shaft, the oil tank is separated from the training platform, and the high-pressure rubber hose is connected to avoid resonance between the vibration source and other mechanisms, which greatly reduces the noise and vibration generated by the pump station.
6. Strong safety: with current-type leakage protection, with overcurrent protection, to prevent the equipment from being damaged by wrong operation;With phase sequence protection, when the phase is broken or the phase sequence is changed, cut off the loop power to prevent the motor from reversing;The system is equipped with uhp unloading protection function to avoid damaging components and ensure safety.
7. Flexible system combination: modular structure design is adopted, modules can operate independently between modules, or can be combined into a comprehensive control system by several modules to facilitate the upgrade and expansion of equipment.
8. A wide range of technologies: covering a variety of technologies and integration, truly embodies the integration of machine, electricity, hydraulic, gas new teaching and training equipment
