Description
Training project
1. Acknowledge of structure of central air-conditioner and training of the device;
2. Start and stop training of central air-conditioner;
3. Running and adjust operation training of central air-conditioner;
4. Operation condition of central air-conditioner and detection of running parameter;
5. PLC programming and PLC installation, wiring and debugging;
6. Equipped with pressure transmitter, temperature sensor and relevant A/D change function module, which is available to do the training of collect, real time monitor the running parameter of the central air-conditioner;
7. Configuration technology application training: adopt configuration technology to realize animation display, operating data display, real time monitoring, curve analysis, history memory display, alarm, configuration printing, etc., of central air-conditioner running;
8. Network remote control training;
9. Network installation and setting;
10. Installation and using of sensor and transformer;
Configuration

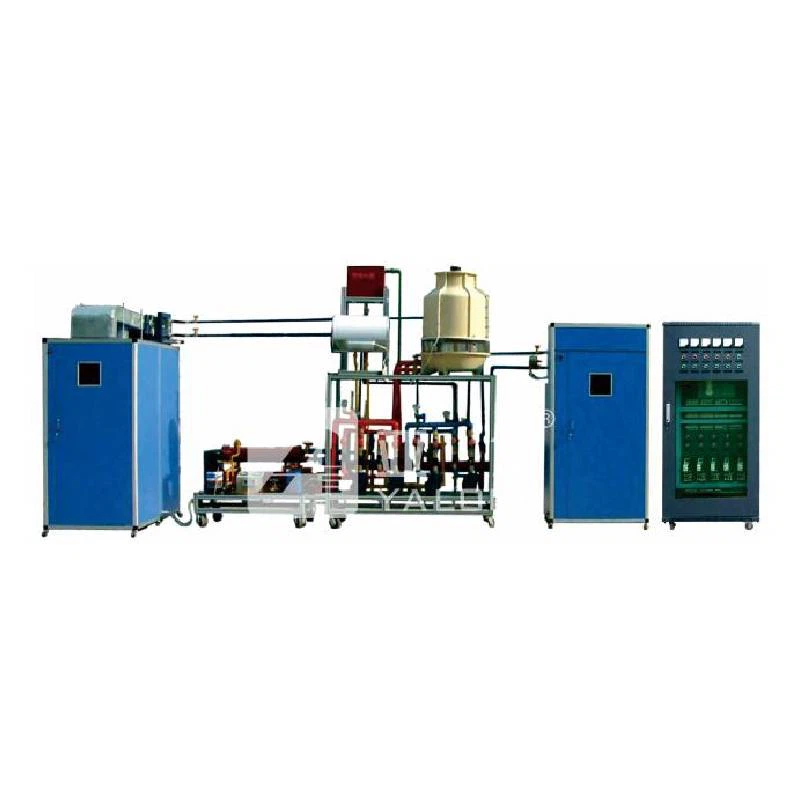

YL-1557A Water cooled Central Air condition Trainer uses one 3p water-cooling machine unit, one cooling water pump, one chilling water pump. In the terminal, there are one simulating lobby and one simulating guest room. One water collecting facility and one water distributing facility will distribute and adjust the amount of cooling capacity. The central air–conditioner adopts PLC as master control unit, communicate with PLC through computer with communication cable to control operation of air-Conditioner, which also can be remotely controlled through network, Parameters for real-time display and monitor on computer are collected by sensor and converter, then converted through A/D and send to PLC, PLC send to computer to proceed the real-time monitoring.
The YL-1557A Water cooled Central Air condition Trainer is able to realize two modes: manual and computer control; Manual control button is on the control cabinet door, which are access to PLC corresponding input variable, control the central air-condition directly. Computer control uses configuration technology to set up stable communication between computer and PLC, so as to control the complete central air-condition, and realize the display and analysis of air-condition running data; meanwhile can be updated through network to set up communication between computer and computer, so as to realize the remote control of central air-condition.
