YL-818 Air Conditioning And Refrigeration Training Equipment Profile The YL-818 Air Conditioning And Refrigeration Training Equipment consists of 2 parts: refrigerating system and electric control module. Refrigerating system is divided into split heat pump air-condition and direct-cooling

Ask for details
Category:

Description

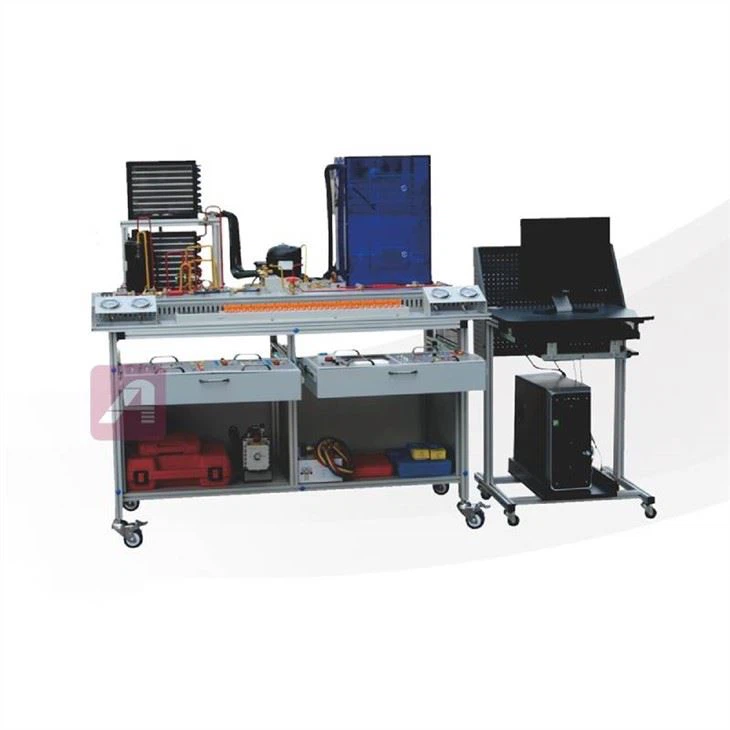

The YL-818 Air Conditioning And Refrigeration Training Equipment consists of 2 parts: refrigerating system and electric control module. Refrigerating system is divided into split heat pump air-condition and direct-cooling refrigerator, which covers installation, pipeline design welding technology, wiring, pressure maintaining, leakage detection, vacuum pumping, refrigerant filling, refrigerant recovery involved in refrigerating major. For the electric control module, there are four working modes of split heat pump air-condition: refrigerating, heating, dehumidification and automatic; there are three working modes of direct-cooling refrigerator: standard, energy efficiency, quick-freeze.



Functional feature

1. The YL-818 Air Conditioning And Refrigeration Training Equipment integrates installation of refrigeration air conditioning system, installation of refrigerator system, electric wiring of refrigerating system, pressure leakage detection, vacuuming, refrigerant charging, operation and commissioning. It contains all the steps of the refrigeration system maintenance such as dismounting, welding and detection that can meet the practical teaching various working mode, working condition debugging and system pipeline.

2. The training platform visually shows the system structure and work principle of refrigerator and air conditioner. We can clearly see the structure and main components of refrigerating system. System is also equipped with voltmeter, ammeter, pressure gauge, signal indicating light, real-time monitoring the working condition of the whole air conditioning system, refrigerating system.

3. Table surface of the device uses new design of combination structure of aluminum profile, meet the requirement of welding operation. There is a water receive pan under the table, solving the problem of the treatment of condensate water and refrigerant oil during training.

4. Device adopts design of cooper pipe fixed device, which is able to fix every moving joint of refrigerating system, reducing the losses of pipes due to repeat dismounting. It is available for students to carry out the training of system installation and welding repeatedly.

Technical specification

1. Input power: single-phase three-wire AC 220V±10% 50Hz;

2. Working environment: temperature – 10 ℃ ~ 40 ℃, relative humidity≤ 85% (25℃), altitude of < 4000M;

3. Equipment capacity:≤1.5KVA;

4. The refrigerant: Air conditioner:R22; Refrigerator: R600a;

5. Dimension: 1500mm×800mm×1450mm;

6. Security protection: over-voltage, over-current, overload, leakage protection measures, in accordance with relevant national standards; material selection conforms to the national related environmental standards;
