Description

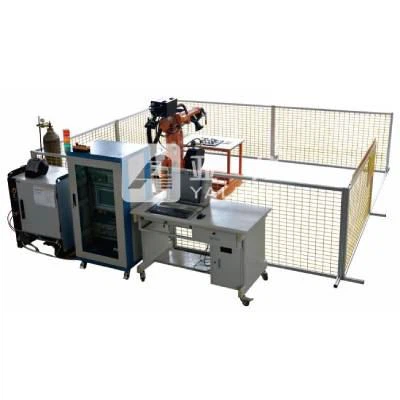

YL-1355A Robotic Welding Trainer (hereinafter referred to as YL-1355A), YL-1355A is mainly composed of FANUC robot, robot controller, welding machine, wire feeder, welding gun, smoke filter, gas bottle(100% industrial liquid carbon dioxide), welding workbench, control cabinet, computer workbench, etc. The overall structure is large steel plate floor type.
Function description
With the transformation and upgrading of modern manufacturing industry and service industry, industrial robots are widely applied in the assembly, packing, palletizing, metal cutting, welding, spray finishing and coating, etc. Different requirements of robot installation, programming, debugging are proposed in the application of different fields.
YL-1355A Robotic Welding Trainer selects FANUC robot, which is widely used in assembly, installation and weldingof industry area, and also providing various study system.
1. Basic function of robot unit
The robot unit plays an extremely important role in the high-quality and efficient welding production. For different working faces of the welding fixture, the robot can judge the corresponding welding instruction through the program. If the process is changed, you only to change the welding program to meet the corresponding changes. The welding voltage, current, welding speed and dry extension of the welding plays a decisive role in the welding result. The use of the robot can ensure that the welding parameters of each weld joint are constant, as a result, the welding quality is less influenced by the human factors, which reduces the operation technology requirements of the workers, improving the welding quality.
2. Basic function of smoke purification unit
1355A is set with smoke filter, sucker is installed in the working area, which can absorb the smoke and spatter directly, it is of strong suction ability, and saving material. It greatly reduces the dust emission to the environment, and prevent exhaust gas to human.
3. Basic function of welding unit
Welding unit is composed of welding machine, wire feeder, wire set, welding gun, 100% industry liquid carbon dioxide. Main task of welding unit is to provide high-quality welding, which can accomplish the following function:
① With the function of over-current, over-voltage, undervoltage, thermal protection, plug, turning on protection, which ensure the safety of operator and realiability of welding machine.
② System insert with welding data base, combine parameter automatically and intelligently.
③ Good welding performance, realizing various material high-quality welding.
④ Digital control, precise digital waveform, realizing one droplet per pulse transfer.
⑤ Standard digit, simulated special interface, optional robot interface, easy to realize welding automation.
⑥ Full-digital wire feeding control system, stable wire feeding.
⑦ Solve the problem that aluminum arc welding is difficult to fuse, are extinguishing easy to form crater;
4. Basic function of control cabinet
Control cabinet is composed of PLC, touch screen, switching power supply, etc. The main function is to control the start, stop, monitor and response of alarm information of YL-1355A, it is the control center of YL-1355A.
