Description

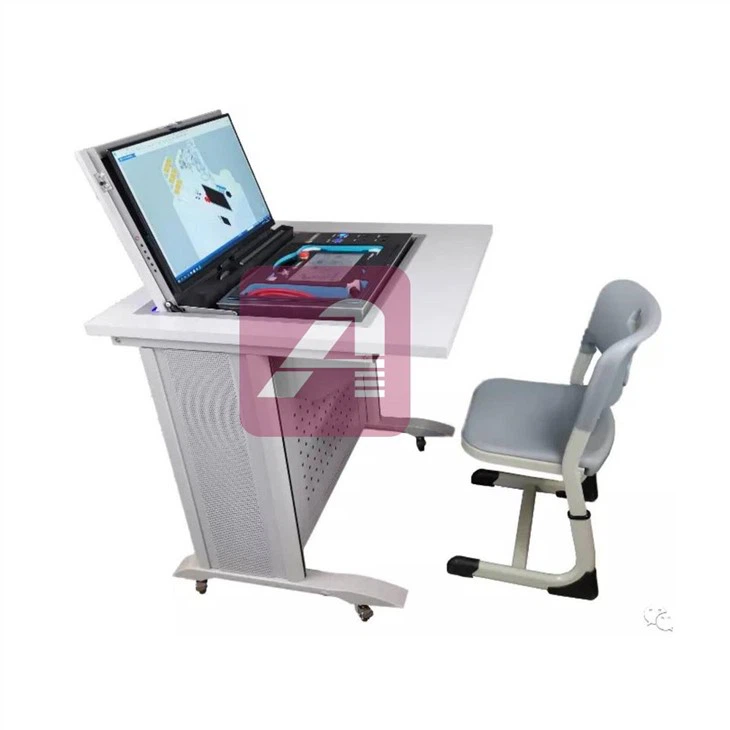

Hengrui H6-A industrial robot virtual simulation workbench is composed of an industrial robot physical handheld teaching box, built-in computer host, Hengrui industrial robot motion controller, 24-inch touch LCD display, keyboard and mouse set and foldable table body composition. The physical teaching box is loaded with “multi-brand industrial robot teaching operating system software”, and the built-in computer host is loaded with “Robot Creator industrial robot virtual simulation training software” and related robot digital workstation models. When using the device, the user holds the physical teaching box, and can choose to open a certain brand of industrial robot teaching system, and perform teaching and programming operations on the virtual robot workstation in the digital environment to complete the industrial robot training task combining virtual and real.
Features
(1) The integration of virtuality and reality takes into account safety, economy, and participation
The platform adopts a digital industrial robot workstation model, and retains the real industrial robot controller and hand-held teaching device. This product form makes the training equipment economical and guarantees the safety of the students during the training process. Let more students participate in the learning of industrial robots.
(2) Equipped with multi-brand industrial robot teaching system
The company’s self-developed multi-brand robot teaching operating system is compatible with the teaching interfaces and programming languages of five brands including Hengrui, ABB, Yaskawa, KUKA, and FANUC. In a true sense, it realizes “one screen, multiple training”, ” “One machine, multiple learning”, the virtual industrial robot workstation can be taught on-site and reproduced motion control directly through the operation interface of the physical handheld teach pendant.
(3) External can be interconnected with PLC
It supports multiple types of communication protocols, and can realize signal interaction with mainstream brands of PLC, including Siemens, Mitsubishi, Inovance, Xinje, etc., to facilitate users to realize PLC drive virtual simulation and quickly create a digital twin system for integrated applications.
(4) Foldable workbench design is suitable for integrated teaching of theory and practice
The workbench adopts a foldable and concealed design, which can easily switch between the two states of folding and unfolding. When the workbench is switched to the unfolded state, the control panel equipped with the teaching box will automatically rise, and the LCD screen will automatically turn over. The trainees can start the system on the control panel, take out the physical teaching box from the storage EVA for operation training. At the end of the training, only need to put the teaching box back to its original place, arrange the cables and close the system, and then fold it easily Workbench, this design can effectively reduce the occupation of equipment space and reduce the difficulty of on-site equipment management. It is especially suitable for the integrated teaching of theory and practice of industrial robots in large classes.
Effect Picture A of a Lishi Integrated Classroom Equipped with H6-A Equipment
Effect Picture B of a Lishi Integrated Classroom Equipped with H6-A Equipment
Typical Case
