Description

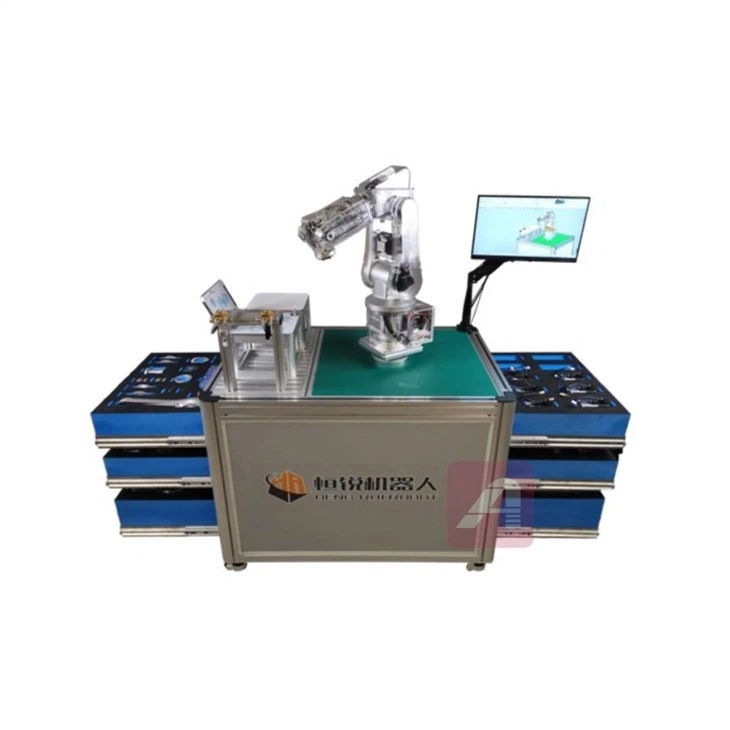

The W-4 industrial robot disassembly training workstation is composed of a set of Hengrui H3 transparent industrial six-axis robot, drawer type aluminum alloy table, industrial robot training module, and 22-inch touch LCD display. The workstation has the following three special function:
1. Multi-brand industrial robot teaching operating system: “Learn more with one screen, practice more with one machine”
The multi-brand teaching system supports both Hengrui and the “four robot families” teaching system: the control system is compatible with the teaching interfaces and programming languages of the five brands of Hengrui, ABB, Yaskawa, KUKA, and FANUC at the same time, relying on the same The set of hardware achieves the teaching effect of “multiple learning with one screen, multi-practice with one machine”, which greatly saves equipment purchase expenses and site occupation.
2. Drawer storage design, clean and orderly disassembly process
The drawer-type aluminum alloy table body is equipped with six storage drawers for disassembly and assembly, and each drawer is equipped with EVA storage materials. A storage groove is set for each part of the robot and coded to ensure that each part can be stored during the disassembly and assembly process. Orderly, effectively avoiding the scattering and loss of parts.
W-4 industrial robot disassembly training workstation Workstation size
training projects
1. Programming, debugging and application
(1) The industrial robot debugs the operation process of the industrial robot through the teach pendant
(2) Debug the operation process of industrial robots through computer software
(3) Establishment and application of robot control database
(4) Compilation and debugging of industrial robot trajectory program
(5) Calibration of industrial robot tools and workpiece coordinate systems
(6) Programming and design of programmable controller program
2. Maintenance and maintenance of equipment
(1) Able to perform safety inspections on the robot in accordance with the robot operating regulations
(2) Perform simple repairs and maintenance according to system abnormalities and mechanical failures
(3) Daily, weekly and monthly inspection and maintenance of industrial robots.
3. Hardware installation and debugging
(1) Installation and debugging technology of industrial robot base
(2) Industrial robot installation and debugging technology
(3) Installation and debugging of the robot training module
