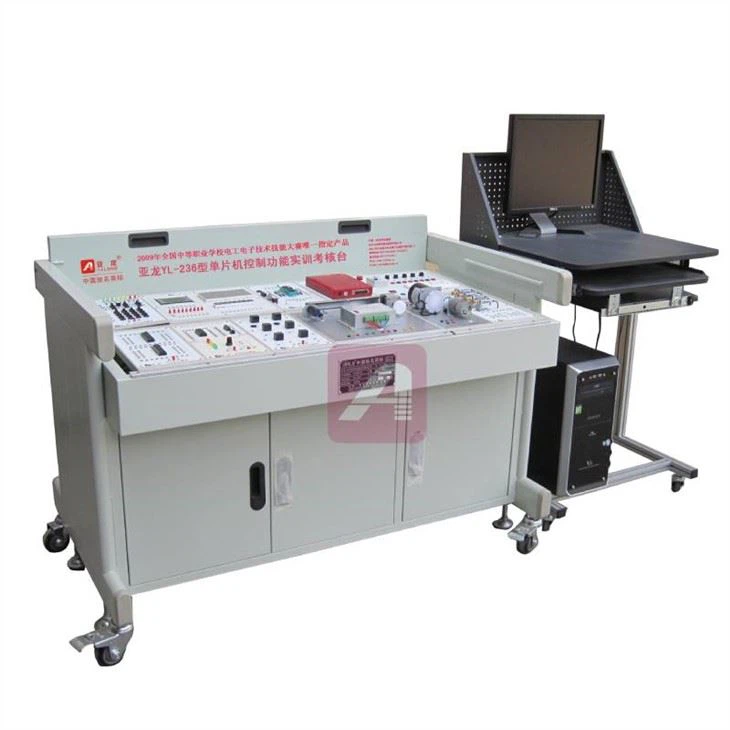

YL-236 Single Chip Microcomputer Control Training Device(Old Module+ G001 +New Module + G003) YL-G003 Manipulator Description Based on the existing YL-236 Single Chip Microcomputer Control Training Device , it is added with 8 modules and 1 new manipulator (MCU16AVR host module, MCU17 serial…

Ask for details
Category:
Brands:

Description


YL-G003 Manipulator

Description

Based on the existing YL-236 Single Chip Microcomputer Control Training Device, it is added with 8 modules and 1 new manipulator (MCU16AVR host module, MCU17 serial AD/DA/EEPROM/RTC module, MCU18 serial extension module, MCU19 parallel extension module, MCU20 short distance communication module, MCU21 sensor matching module, MCU22WIFI wireless communication module, MCU23 STC host module, G003 manipulator). And moreover, it is added with power reverse connection prevention protection based on the original module.

Main components of G003 module:

  • Three-axis linear transfer robot mechanism;
  • Intelligent storage mechanism support;
  • RFID
  • 9 pcs of material labeled with electronic tag;
  • Connect & supply material mechanism;
  • Touch panel;
  • Material transfer belt and guide rail;



YL-236 Single Chip Microcomputer Control Training Device Technical specification

1. Input power: single phase AC 220V±10%(50Hz);

2. Output power:  DC ±12V±5％/0.5A

DC ±5V±5％/3.5A

DC 24V±5％/6A

3. Temperature:-10～40 ℃; Environment humidity:≤90%(25℃);

4. Dimension: approx. 1225mm×690mm×820mm(L×W×H);

5. Overall consumption: ≤0.5 kW;

6. Security protection methods: with grounding protection, electric leakage production function, safety conforms to relative national standard.

1. Power input: AC220V±10％;

2. Voltage output: DC 24V±5％/2.5A,DC 5V±5％/1A;

3. Dimension:600*520*280mm;

4. Overall consumption:≤1KVA;
