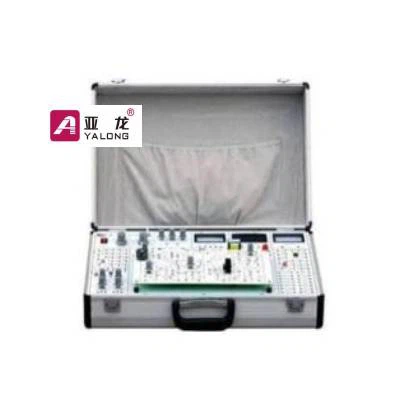

The experiment case uses high quality and high strength PCB material as the basal plate; the product is the basic experiment teaching instrument which is to simulate the circuit, electronic technology fundamental and curriculum design. It is designed according to the electronic teaching requirement and modern teaching characteristics. Product is of stable performance, strong operability.
The experiment case uses high quality and high strength PCB material as the basal plate; the product is the basic experiment teaching instrument which is to simulate the circuit, electronic technology fundamental and curriculum design. It is designed according to the electronic teaching requirement and modern teaching characteristics. Product is of stable performance, strong operability.
1、Environment temperature:-5℃～40℃;
2、Relative humidity: ≤85% (25℃);
3、Overall consumption: 30W;
4、Dimension: 510×320×110mm;
5、Power input: AC220V±10%;
6、Power output: DC ±12V/1A, ±5V/1A; DC 0～+24V/0.5A, 0～-24V/0.5A continuous adjustable; AC 50Hz 6V, 9V, 12V, 15V/0.2A; ±12V/0.2A
7、Signal source: functional generator: output waveform: square wave, triangular wave, sine wave and to adjust the amplitude, frequency, duty ration; amplitude: 0～500mV, 0～12V, continuous adjustable; frequency range: 1HZ～10HZ, 10HZ～100HZ, 100HZ～1KHZ, 1KHZ～10KHZ,10KHZ～100KHZ, 100KHZ～1MHZ;
8、Header part: DC milliammeter (1.5 class), measuring range: 1mA, 10mA, 100mA, 1A; Digital DC voltmeter (1 class): voltage range 220V; pointer DC voltmeter (1.5 class): voltage range:15V;
