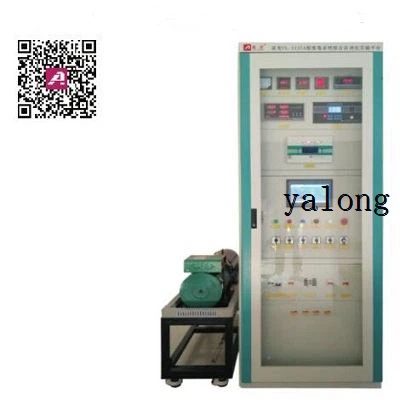

The generator set consists of a three-phase synchronous generator on the same shaft, a direct current motor for simulating the prime mover and a speed measuring device.Dc motor and three-phase synchronous generator are connected to each other by elastic coupler and are assembled on an active site to form a mobile unit.Compact structure, small footprint, portable.The mobile chassis of the unit has four spiral legs and three rubber wheels.
According to the process of electric energy production and protection, “comprehensive automatic test platform for power generation System” provides engineering training contents including microcomputer protection device, PLC, touch screen, DC governor, excitation controller, quasi-synchronous device, instrument monitoring and so on., the platform is suitable for all kinds of labor training, skill appraisal and engineering training of relevant majors in higher vocational colleges.
Other equipment
2.1 Personal safety and device safety protection function
Meet the national standard, the power input end of the experimental device is equipped with current leakage electrical appliances, the control screen, outside or strong power output leakage phenomenon, immediately alarm and cut off the main power supply, to ensure the safety of the experiment.
The closed safety experimental wire is used to avoid electric shock accidents caused by students’ touching the electric wires with their hands.
Practical function
(1) Power system automation platform
Wiring and commissioning of generator sets
Voltage transformer wiring
Current transformer wiring
Practical training project of automatic device and relay protection
Wiring and debugging of generator set speed regulation system
Wiring and debugging of excitation system in power plant
Power plant system wiring and commissioning
