Description
Device overview

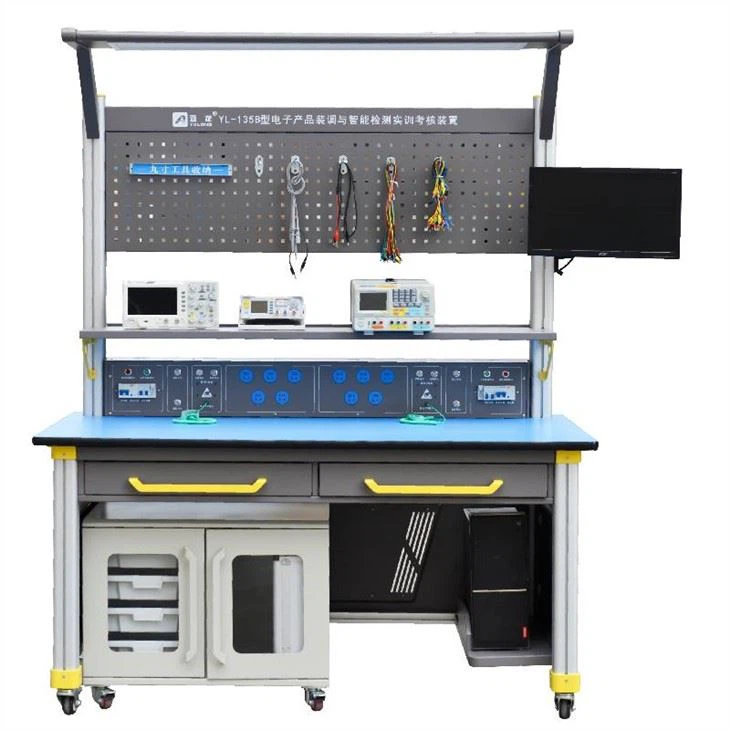

YL-135B power electronics training system can complete the assembly, debugging and maintenance training of small and medium-sized electronic products. It enables students to master the basic skills of electronic product assembly and debugging. At the same time, it can meet the comprehensive, design and innovative training requirements for electronic production, electronic design, curriculum design, graduation design and so on.
AI+IOT application module is composed of ESP32 host module and AI host module as main board unit and sensor unit. Through the universal expansion board, the main board unit and the sensor unit can be quickly connected, and a USB data cable can be used to program in MicroPython language.
Equipped with ESP32 host module and AI host module respectively, ESP32 host module has onboard USB, SD card, indicator lights, buttons, 40P expansion interface and other resources. The ESP32-WROOM-32 module integrates Wi-Fi and supports direct connection to the Internet through a router; the AI host module has an onboard 300,000-pixel camera, 2.4-inch TFT screen, neural network algorithm processor, USB, SD card, buttons, lithium battery, 32P extension interface and other resources.Through the general expansion board, the interface of the host unit is converted into a general 4P interface and a general 3P pin interface, and the user can flexibly select the corresponding interface to adapt to different peripheral function configurations.
The modules include LED light module, button module, RGB color light module, buzzer module, human body sensor, photosensitive sensor, temperature sensor, humidity sensor, OLED display module, analog sensor, DC motor module, air pressure sensor module, etc. 15 The remaining modules and sensors are connected to the general expansion board through 4P cables.
