Description

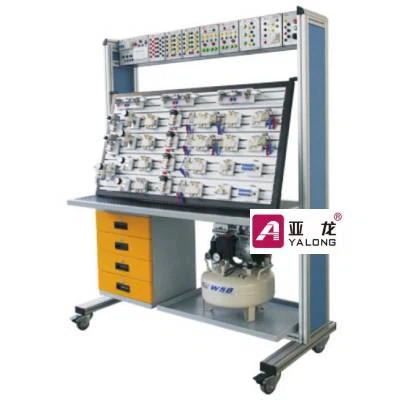

Yalong YL-1330A Pneumatic Training System is composed of practice table, practice operation panel of pneumatic system loop, electrical control part, etc. The electrical part is mainly composed of PLC module, relay module, power module, button module and other parts.
The main frame of the training platform is assembled with aluminum and wood structure. The platform is light in weight and equipped with universal wheel, which can facilitate the movement of the training platform.The platform is divided into two layers, above which electrical modules can be placed, and below is the training screen. The training screen is made of aluminum alloy with slots, which is convenient for the installation and disassembly of pneumatic components. Students can set up any pneumatic circuit on the training screen according to the experimental needs to form a pneumatic system with certain functions.The training platform adopts modular structure, which is convenient for combination and expansion and improves the utilization rate of equipment space.
Characteristics
1. “A plastic Quick Disassembly bottom plate” is installed at the bottom of all pneumatic components to replace hydraulic components quickly and conveniently.
2. The operation panel of the training is made of 9 sections (width: 80mm× thickness: 20mm× length: 1500mm). The section wall thickness: 3mm “T” aluminum alloy sections.
3. Various components of pneumatic system can be arranged according to the needs of the equipment.
4. Assemble the experimental circuit quickly and conveniently during the experiment;The experimental circuit is clear and clear.
5. Electrical and PLC control adopts modular structure, easy to operate, simple overall structure, strong practicality.
6. The control scheme is optimized by adopting PLC control.
7. Easy to achieve standardization, serialization and generalization, and easy to design, manufacture and popularize modular.
8. All pneumatic components shall adopt international well-known brands: PNEUMATIC components of SMC or other well-known brands.
9. Reasonable patent training table and electrical modular design can avoid cross interference between the training circuit and the electrical circuit during the training. The circuit is simple and the principle is clear.(If the bidder provides video of the training table and equipment, failure to meet the requirements will be regarded as an invalid bid)
10. Electric control module: adopt DC24V safety connection, hydraulic solenoid valve connector adopts plane quick connection structure with one-way valve, which is convenient and quick to connect, and solve the problems such as terminal head falling off and wire breaking
11. Below the training table: A hydraulic component cabinet: There are 4 mounting plates of hydraulic components in the cabinet with dimensions of 570mm×400mm×15mm, and A complete set of hydraulic components are placed;B tool cabinet: including 3 drawer tool cabinets, each drawer has self-locking function, and each layer of drawer should have a partition, which can be divided into separate Spaces to place components.(If the bidder provides video of the training table and equipment, failure to meet the requirements will be regarded as an invalid bid)
