Description

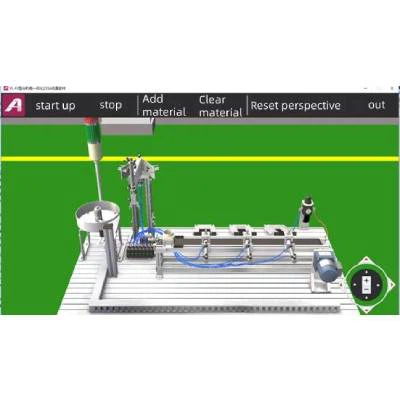

YL-F3 Optomechatronics Simulation Software is a three-dimensional software for virtual simulation of Yalong YL-235A Optomechatronics Training and Assessment Device. The software mainly includes the training bench, the mechanical parts (feeding unit, handling unit, sorting unit) of the Yalong YL-235A optomechatronics integration training and assessment device, and built-in various sensor signals, etc., and simulates The entire movement process of the Yalong YL-235A Optomechatronics Training and Assessment Device. Users can control the operation of 3D simulation objects in the software through international IEC PLC ladder diagrams, Siemens PLC ladder diagrams, SFC sequence flowcharts, etc., and can program and debug mechatronics equipment.
Operating environment requirements
| Minimum configuration | Recommended configuration | |
| operating system | Windows 7、Windows 10 | Windows 7、Windows 10 |
| CPU | Intel Core i5-4460 2.2GHz | Intel Core i7 3770 2.4GHz |
| RAM | 4GB RAM | 8GB RAM |
| Graphics card | Nvdia GeForce GTX760 2GB VRAM | Nvdia GeForce GTX1060 3GB VRAM |
| storage | 2GB free space required | 2GB free space required |
Function Description
The equipment model in the YL-F3 Optomechatronics simulation software is exactly the same as the actual Yalong YL-235A Optomechatronics training and assessment device. You can use any of the international IEC PLC ladder diagrams, Siemens PLC ladder diagrams, SFC sequence flowcharts, etc. for programming software, and use the YL-F3 Optomechatronics simulation software to use the program that has passed the simulation, which can be directly downloaded to the actual In the PLC equipped with Zhongyalong YL-235A Optomechatronics Training and Assessment Device.
