Description

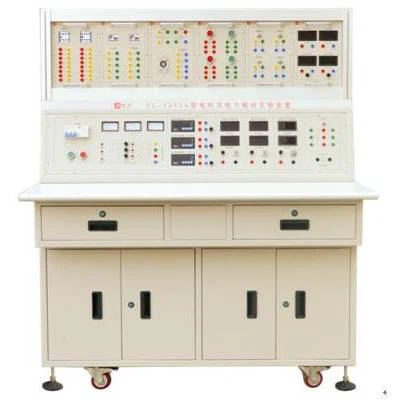

YL-1152A Motor, Electric Traction Training Equipment is according the current advanced manufacturing technology, commonly used motor and electrical circuit requirements, on the premise of ensuring personal safety, using a modular structure, in order to cultivate student engineering practice ability and build an experimental platform with a variety of power supplies, various instruments, and equipped with advanced multi-function speed measurement, torque measurement, dynamometer measurement instrument.
YL-1152A Motor, Electric Traction Training Equipment Training items:
1. DC generator features measurement
2. Separately excited DC motor features measurement
3. Separately excited DC motor speed regulation features
4. Series and compound DC motor mechanical features measurement
5. Single phase transformer features
6. Single phase transformer parallel operation
7. 3-phase transformer wiring recognition and connection
8. 3-phase cage asynchronous motor performance
9. 3-phase cage motor mechanical features measurement
10. 3-phase winding rotor asynchronous motor features
11. Capacitive single phase asynchronous motor features
12. 3-phase synchronous motor features
13. 3-phase asynchronous motor rotation control circuit
14. Bench automatic forward-back movement control circuit
15. 3-phase asynchronous motor sequence control circuit
16. 3-phase asynchronous motor Y-Δ start control circuit
17. 3-phase asynchronous motor energy consumption circuit
18. 3-phase winding asynchronous motor start control circuit
19. C620 Lathe electrical control circuit
20. M7130 Plane grinding machine electrical control circuit Components List
