Description

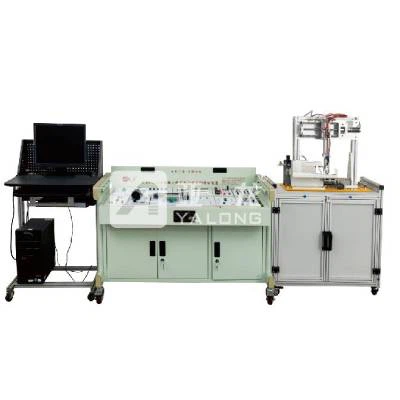

This YL-236 MCU Trainer adopts the structural design of training table and training module,The module adopts a standard structure and is highly interchangeable,The module content is determined according to the principle of input, output, data conversion and other functions, so that the required module can be easily selected during teaching or competition.
The resource of this equipment is fully open, not only suitable for education, but also for skill competition of electrical and automation control specialty, class arrangement and graduation design. It is even equipped with electromechanical integral device: YL-G001 type intelligent material transportor, which is vacant in domestic SCM teaching facilities. This equipment cultures students’ abilities of thinking and practice in many aspects, such as pneumatic control, electric control, SCM control, electric circuit and software design. The way of combining teaching with practice enables graduates to design and manufacture conventional industrial control automation equipments by use of their SCM knowledge, thus become enterprises’useful personnel.
This YL-236 MCU Trainer mainly consists of training table (training table and class table are combo designed), computer cart, host module, power module, emluator module, display module, command module, AD\DA module, AC-DC motor control module, stepping motor control module, sensor matching module, extensive module, temperature sensor module, parallel serial conversion module, IIC bus module, dolly motion module, intelligent material handling device, etc. All module resources are open. It can do confirmatory experiments and design experiments, embody the design concept of flexibility, open, innovation, integration and trans-nations, also conform to students’ cognitive learning curve from basis to high level, from theory to practice.
Training projects
Applied to teaching, Yalong YL-236 type SCM control function training evaluation device can plan education activities and finish below duties orienting on working process and mode of combining learning with working.
SCM parts
1. Horse race lamp experiment
2. Independent keystroke input experiment
3. Matrix keyboard interface training
4. Photoelectric coupling isolation input and output experiment
5. Metal detect training
6. Relay isolating control experiment
7. Static LED display experiment
8. Dynamic LED display experiment
9. Buzzer play experiment
10. 8255 chip extensive IO port experiment
11. LCD module control training
12. LED screen character display experiment
13. AD conversion experiment
14. DA conversion experiment
15. LM35 temperature sensor acquisition experiment
16. IIC bus IC card storage experiment
17. EEPROM chip 24 series storage experiment
18. External interrupt photoelectric counting control motor training
19. Timer interrupt control motor experiment
20. Open-loop stepping motor control training
21. Experiment of closed-loop AC-DC motor system
22. Experiment of closed-loop stepping motor system
23. Experiment of constant room temperature control system
24. PS keyboard communication experiment
25. RS232 communication experiment
Parts of Intelligent material handling device
1. Sensor technology training
2. Application training of DC gear motor
3. Application training of pneumatic circuit
4. Application training of screw transmission mechanism
5. Positioning control training of linear motion unit
6. Diagnosis and troubleshooting training of mechanical fault, control experiment of pneumatic solenoid valve.
