Description
All the equipment resources are open, which is not only suitable for teaching, but also for skill competition, class design and graduation design of electrical and automatic control majors.The training set in addition equipped with common MCU peripheral circuit, also comply with the single-chip computer application technology development, to abandon some of the old production has been halted impractical chip (82 c55, for example), instead, the new USB interface module, CAN bus interface module and Ethernet interface module, speech synthesis, ultrasonic ranging, infrared communication and pulse potentiometer, etc.The device from the single-chip microcomputer control, electrical circuit, software design and other aspects to train students to use their brains;The combination of teaching and practice enables students to design and manufacture commonly used industrial control automation equipment with the knowledge of single chip microcomputer soon after graduation, so as to become useful talents in enterprises.

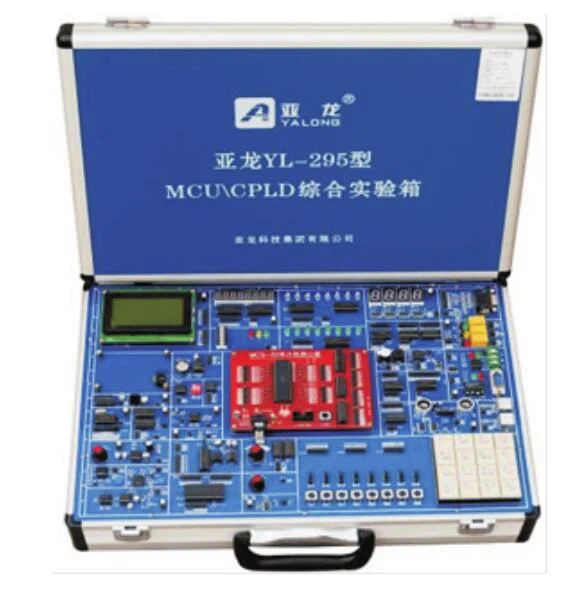

This equipment adopts modular combination scheme, which is composed of the main board, core board, expansion module and onboard instrument, etc. The core board can be replaced into McS-51 core board and EPM7128 core board for practical training according to teaching needs.A device can complete a variety of single-chip microcomputer and CPLD technology training and teaching, the so-called multi-machine, reduce the cost of purchasing equipment and cover an area, shorten the time students get familiar with the equipment.Equipment to provide detailed program code and teaching materials, all module resources are open.You can do confirmatory experiments, you can do design experiments.Embodies the flexible, open, innovative, comprehensive, cross-field design concept.In line with the students’ learning cognitive curve from basic to advanced, from theory to practice.
