Description

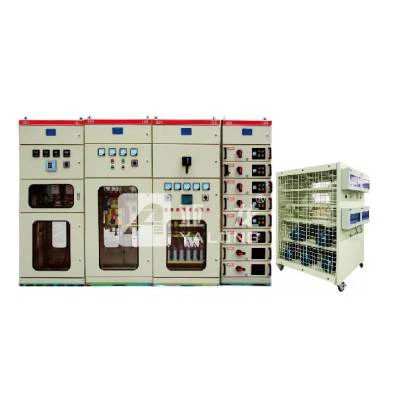

The standard configuration of YL-160-1 low voltage distribution training equipment consists of incoming cabinet, gauge cabinet, compensation cabinet, low voltage outgoing cabinet and load cabinet. Using cabinet power supply system can make students to establish a good professional habit, and comprehensively grasp the essentials for safe operation.
YL-160-1 low voltage distribution training equipment is suitable for electrical major training teaching such as electric power, electric, automation, building electric, industrial and civil architecture majors and non-electric major training teaching.
Part of the training projects
1. Running mode training of power distribution system
2. Switching operation training of low voltage power distribution equipment
3. Transformer training
Connection mode of current transformer
Wiring training of active and reactive power meter
Wiring training of multifunctional integrated instrument
Meter reading training
4. Switch electrical appliances training
⑴The principle and wiring of low-pressure frame-type circuit breaker
⑵The principle and wiring of low-voltage molded case circuit breaker
⑶The principle and wiring of isolating switch
5. Manual power factor compensation training
6. Automatic power factor correction training
7. Classification protection training of low voltage distribution circuit
8. Grounding protection training
9. 0.4KV lighting power distribution system training
10. 0.4KV power system distribution training
11. Safety operation regulation training
12. Professional skill appraisal training of power supply and distribution electrician and maintenance electrician
