Description

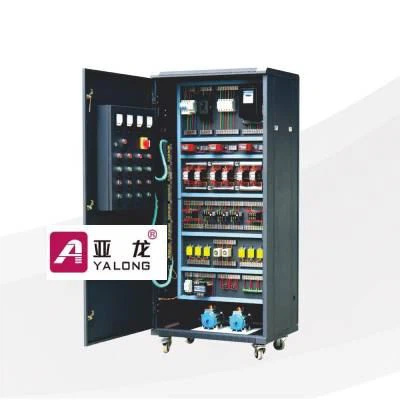

The tester, based on standard electrical control cabinet, has lighting circuits and components on the backside; on the other side, it has all necessary elements and components needed in motor control circuits, reliably connected to corresponding terminals, and the students can practice in circuit connection on these terminals. On the control cabinet, ammeter and voltmeter, buttons, related elements and components are installed, as same as in actual production, and the common control circuits are used, as well as the actual elements and components, with electric traction software.
The trainer can fulfil various common lighting circuits and common motor control circuit training, with leakage protection, overload and short circuit protection, to ensure human safety and equipment safety. As proved, it is an ideal vocational education trainer, suitable for higher and middle vocational and technical schools, colleges and polytechnics, vocational skills appraisal centers and training departments. Meanwhile, the trainer also can be used for teaching and training in scientific science and research institutions.
Functions
House electrical lighting controller installation;
Multi-room lighting electrical distributor installation;
Floor light installation;
Sound control light installation;
Sunlight lamp installation;
Explosion-proof light installation;
Fan installation;
Current transformer, 3-phase active kilo-watt hour meter installation;
1-phase motor rotation control;
1-phase motor speed regulation control;
AC asynchronous motor jog control circuit connection;
Button, contactor inter-lock3-phase AC asynchronous motor rotation control circuit connection;
3-phase AC asynchronous motor Y-△ (time relay switching) voltage drop startcontrol circuit connection;
3-phase AC asynchronous motor energy consumed braking control circuit connection;
3-phase AC asynchronous motor reversed braking control circuit connection;
Multi-motor sequence control circuit connection;
Motor travel control circuit connection;
Dual-speed motor speed regulation control circuit connection;
Common lathe control circuit connection;
Electric pulley-block control circuit connection.
